0014-SF1 Taco Stainless Steel Circulator
MSRP: $917.26
Price: $458.63
You Save: $458.63 (50 %)
Item Number: 46917
Manufacturer Name: Taco
Manufacturer Part No: 0014-SF1
|
|
Product Manuals and Downloads:
0014 Circulator Catalog
0014 Circulator Submittal Data Sheet
Performance Data
Flow Range: 0-32 GPM
Head Range: 0-22 Feet
Minimum Fluid Temperature: 40º F (4º C)
Maximum Fluid Temperature: 230º F (110º C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 3/4”, 1”, 1-1/4”, 1-1/2” Flanged

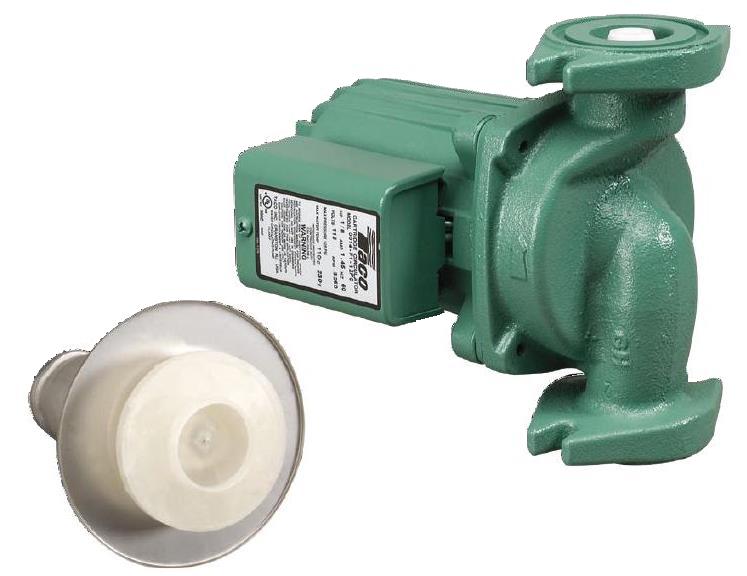

The Taco High Velocity Series 0014 Cartridge Circulator is specifically
designed for medium-head/medium-flow applications in large residential/light commercial systems.
- Exclusive, Anti Condensate Baffle (ACB) protects motor windings on chilled water jobs.
- Available in cast iron or bronze construction—Bronze should be used on open-loop systems.
- Unique, “00” family replaceable cartridge contains all of
the moving parts so you can service it easily instead of replacing the
entire unit.
- Universal flange-to-flange dimensions and orientation allow the 0014 to easily replace other models.
- Compact, direct-drive, low power consumption design makes it ideal for high-efficiency jobs.
Features
- Exclusive Anti-Condensate Baffle (ACB) with Ambient Air Flow—Protects motor windings against condensate buildup.
- High Velocity Performance
- Compact Design
- Quiet, Efficient Operation
- Unique Replaceable Cartridge Design – Field Serviceable
- Direct Drive-Low Power Consumption
- Self-Lubricating
- No Mechanical Seal
- Unmatched Reliability --Maintenance Free
- Universal Flange-to-Flange Dimensions
- Cast Iron or Bronze Construction
Typical Applications
- Large BTUH Boilers
- Primary/Secondary Loops
- Commercial Water Heaters
- Light Commercial Heating and Cooling Systems
|
