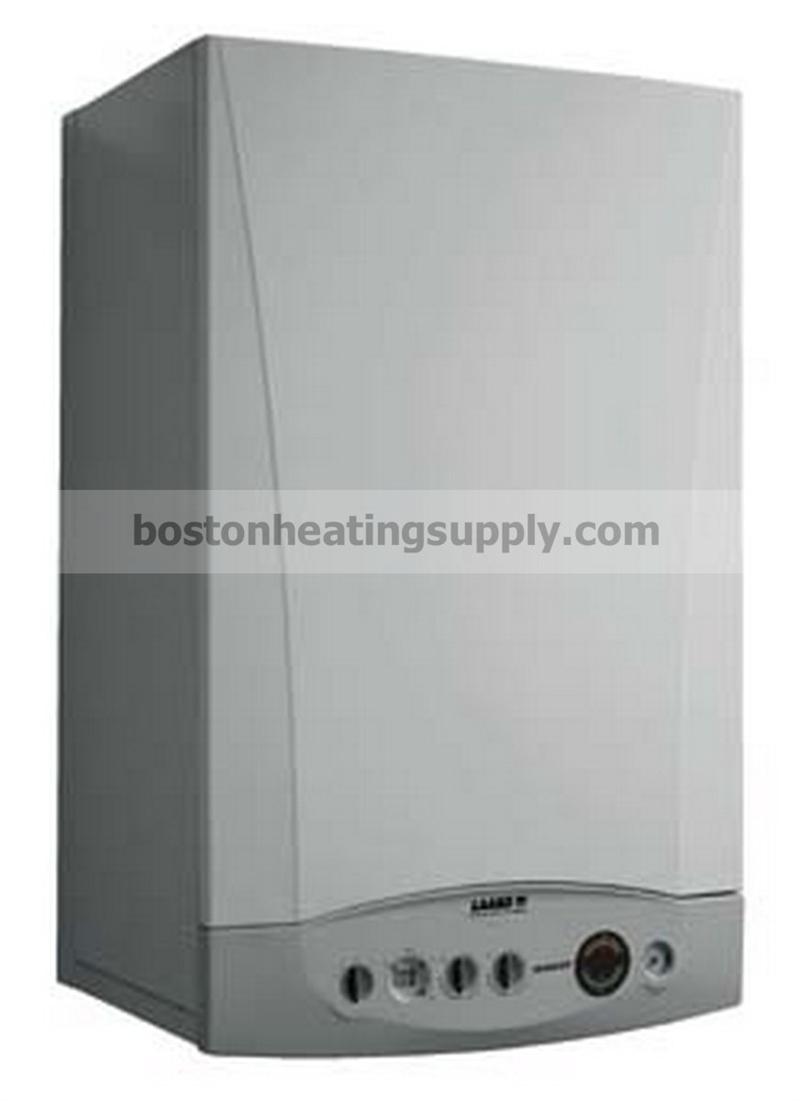

HT145 Mascot Wall-Mounted Condensing Hydronic Boiler
Price: $2849.00 + Free Shipping!
Manufacturer Name: Laars Heating Systems Company
Manufacturer Part No: HT1.45
Free Shipping
Product Options
| |
|
|
Specifications:
- Input: 167,262 MBTU/h (49.0 kW)
- Output: 153,618 MBTU/h (45.0 kW)
- Pressure Relief Valve Setting: 30 psi
- Supply Flow Connection: 3/4"
- Return Connection: 3/4"
- Relief Valve Connection: 3/4"
- Service Clearances:
- Top: 9"
- Bottom: 10"
- Sides: 2"
- Front: 18"
Features:
- Sleek, appliance-grade cabinet that looks great in any location
- Up to 96% efficiency, condensing operation
- 2-year parts warranty, 10-year heat exchanger warranty
- Sealed combustion
- Direct spark ignition for reliability and smooth starts
- Three venting options to meet the needs of almost any installation
- Modulating gas valve that varies from 30% to 100% input
- Variable speed quiet blower
- Boilers are set up for natural gas, no parts necessary for conversion to LP gas
- Built in expansion tank that will handle 26.4 gallons of system water
- Built in water fill valve
- Water flow sensor for hydronic system
- Grundfos circulator with air vent and "quick-remove" mounting system
- Back-flow preventer
- Mounting kit with template and wall bracket for fast and easy installation
- Light-weight (100 lbs.) makes handling easy
- Stainless steel ASME primary heat exchanger with externally welded manifolds for better flow rates and prevention of leaks
- Built-in reverse-pressure by-pass to prevent short cycling
- Advanced Siemens control system with temperature control, diagnostics, outdoor reset capability, and easy access for field wiring
- Complete piping kit with isolation valves, gas cock, domestic water connection adapters with unions, hydronic connectors with unions
- Condensate trap that is easy to inspect & remove from outside the boiler
For more information on this product please view the Sheet(s) below:  Laars Mascot Brochure Laars Mascot Submittal Data Laars Mascot 1.45 & 1.65 Installation Manual Laars Mascot 1.45 & 1.65 Parts List
|
|
|
Baxi Equivalent: 5402830 - SOLD INDIVIDUALLY
|
|
|
|
|
|
Baxi Equivalent: 5669850, 30 PSI
|
Baxi Equivalent: 714059410
|
Baxi Equivalent: 714059210
|
Baxi Equivalent: 714088510
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Baxi Equivalent: 72208001
|
Baxi Equivalent: 714095310
|
Baxi Equivalent: 714076810
|
Baxi Equivalent: 714072811
|
Baxi Equivalent: 714017777
|
|
|
|
|
|
|
