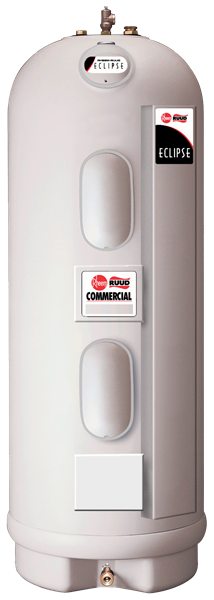

Rheem ME85-18-G Eclipse Electric Commercial Water Heaters
MSRP: $4,416.10
Price: $2,649.66
You Save: $1,766.44 (40 %)
Item Number: 18697
Manufacturer Name: Rheem Manufacturing Company
Manufacturer Part No: ME85-18G
|
|
For more information on this product please view the Sheet(s) below:
 Eclipse™ Series Brochure
Eclipse™ Series Specification Sheet
Eclipse™ Series Use and Care Manual
Note: 3 year limited warranty
Construction Features:
|
Composite tank and high density polyethylene dent and scratch resistant jacket.
Models are in two sizes with capacity of 85 or 105 gallons in 42 total variations.
Voltage options are: 208, 240, or 480 VAC in either single phase or 3-phase and 277 VAC in single phase only.
Element wattages are 3100, 4500 or 6000 in each of the four voltages. The elements are low watt density design (46, 67, 90 watts/sq. in.) with stainless (Inconel) sheath.
The power control circuits use 2 surface mounted thermostats and operate in two stages so that a lower control thermostat is for the lower two elements and an upper control is for the upper two elements. The lower element will provide recovery for all needs and the upper two will kick in additionally for larger demands.
|
170° F maximum delivered temperature.
System Sentinel LED indicators are provided for each element to show power on.
A switch is provided in the control circuit for installation dry fire protection. See label.
A temperature and pressure relief valve is installed on top of the unit.
Water connections at the top of the tank are 1" swivel nuts. A nipple is installed on the outlet (1" x 3" long). The inlet has a vacuum valve connected with a 1 x 1 x 3/4 tee and a 1" close nipple to the swivel.
3/4" full flow drain valve.
Standards approved to UL 1453 and UL/NSF 005.
The four Inconel elements are spaced on the front along a vertical line for easy access.
Input options are: 12.4, 18 or 24 kW.
|
Certifications and Ratings:
Efficiency These models have been tested according to DOE test
procedures, and exceed the minimum energy factor requirements of
current ASHRAE Standards (Part of the Federally mandated Energy Policy
Act (EPact)). Also exceeds energy efficiency codes of all states including
California Energy Commission (CEC).
Safety and Construction These products are design certified by
Underwriters Laboratories (UL) to meet UL standard 1453 as electric
storage tank water heaters. All models are
North Carolina and
Massachusetts Code compliant. Certified for a 150 PSI Maximum
Working Pressure.
|
