MXD-300 Lanair Ductable Waste Oil Heater
MSRP: $9,598.00
Price: $4,799.00
You Save: $4,799.00 (50 %)
Item Number: 51225
Manufacturer Name: Lanair
Manufacturer Part No: MXD-300
Please Call us for Best Freight Rate 866-914-9802
|
|

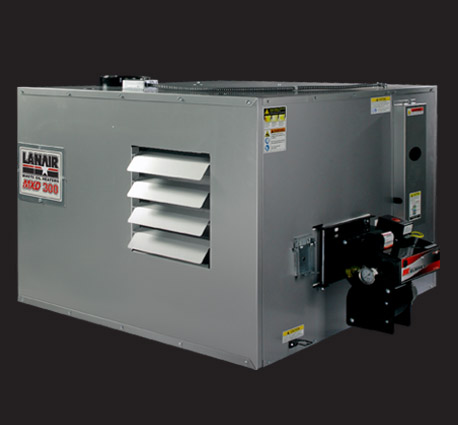

MXD-300 Lanair Waste Oil Heater
Lanair MX300 Specification Sheet
The MXD-300 Waste Oil Heater is the ductable version of the MX-300
pushing out up to 300,000 BTU's an hour. It features a fine grained
galvanized (rust-resistant) cabinet to protect it in most shop
environments, a high performance MX series burner that burns more
efficient than any other burners to date, an internal squirrel cage
blower to reduce excess noise in your shop, adjustable locking louvers
to direct air flow or remove louvers to attach duct. The unit can be
exhausted out the top, back, right, or left. All our units are UL
listed so you can be assured that safety is a high priority with all
Lanair products.
Technical Specifications:
| Specifications:
|
MXD-300
|
| Heat Range (BTUH)**
|
to 300,000
|
| Fuel Input (GPH)
|
2.08
|
| Heating Area (sq. ft)*
|
to 15,000
|
| Power Supply (AC)
|
120 V.6OHz
|
| Power Supply (AC)
|
14.9 Amps / 15 Amps
|
| Cabinet Dimensions (H-W-L)
|
36"x46"x54"
|
| Hanging weight (lbs.)
|
650
|
| Blower (CFM)
|
1696
|
| Chimney Pipe***
|
8" Class "A"
|
| Compressed Air
|
2 CFM - 15 PSI
|
| Combustion Chamber
|
10 Gauge CRS
|
| Ductable Option
|
Yes
|
| Chimney Location
|
Top
|
- * BTUH value varies with fuel type
- ** The suggested heating area is based on building with minimal
heat loss due to open door, construction, materials, windows,
insulation, etc...
- *** Chimney package is optional
- ****Customer supplied
|
