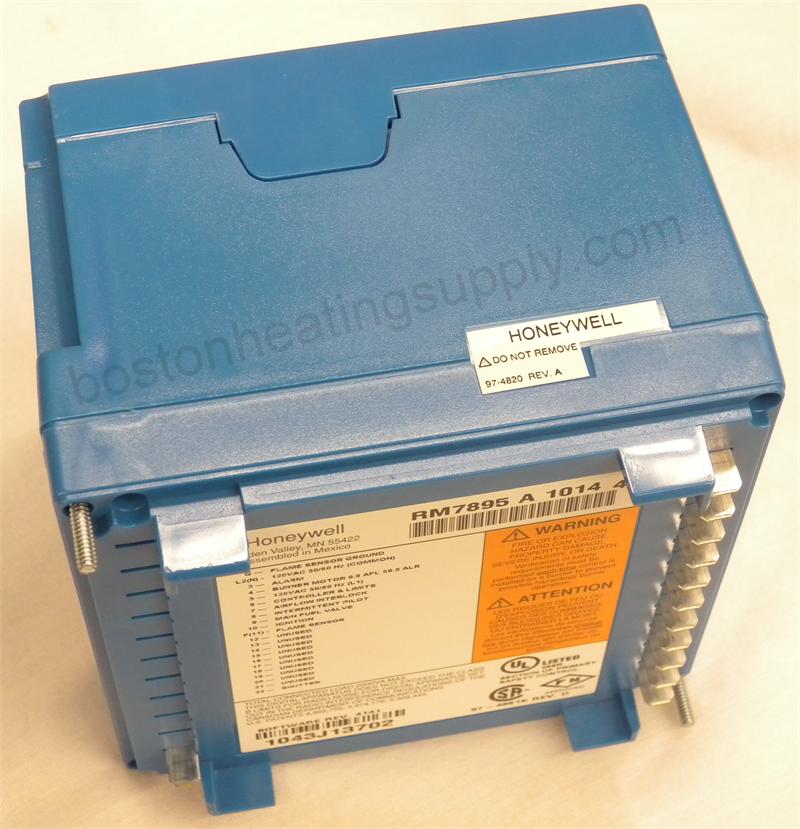

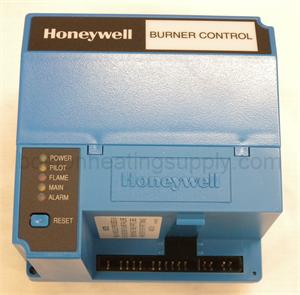

Honeywell RM7895A1014 On/Off Primary Control with PrePurge - Intermittent Pilot
MSRP: $737.60
Price: $448.98
You Save: $288.62 (39 %)
Item Number: 14872
Manufacturer Name: Honeywell
Manufacturer Part No: RM7895A1014
|
|
Product Manuals and Downloads:
Product Data
Installation Instructions
Microprocessor-based integrated
primary burner control for automatically fired gas, oil, or combination
fuel single burner applications. Provides level of safety, functional
capability and features beyond conventional controls.
| Features
|
|
• Functions include automatic
burner sequencing, flame supervision, system status indication, system
or self-diagnostics and troubleshooting.
• Subbase, amplifier, and prepurge timer are required for operation.
• Options
include PC interface, keyboard display module, DATA CONTROLBUS™ MODULE,
remote display module, first-out expanded annunciator, and COMBUSTION
SYSTEM MANAGER™ software.
• Five LEDs provide sequence information.
• Interchangeable plug-in flame amplifiers.
• Optional local or remote annunciation of operation and fault information.
• Nonvolatile memory retains history files and sequencing status after power loss.
• Optional remote reset capability.
• Optional report generation.
• Selectable relight or lockout on loss of flame.
• Airflow switch check.
|
Product Specifications
|
|
|
|
Application
|
On-Off Primary Control with Prepurge
|
|
Flame Establishing Period - Pilot
|
4 sec or 10 sec
|
|
Flame Establishing Period - Main
|
Intermittent
|
|
PrePurge
|
Determined by ST7800A Purge Timer Card
|
|
Required Components
|
Q7800A,B
Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or
R7886 Flame Signal Amplifier. ST7800A Plug-in Purge Timer Card.
|
|
Voltage
|
120 Vac (+10, -15%)
|
|
Vibration
|
0.5 G environment
|
|
Ambient Temperature Range (F)
|
-40 F to +140 F
|
|
Ambient Temperature Range (C)
|
-40 C to +60 C
|
|
Dimensions (in.)
|
5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase x 6 3/32 in. deep with Q7800B Subbase
|
|
Dimensions (mm)
|
127 mm wide x 127 mm high x 133 mm deep with Q7800A Subbase x 155 mm deep with Q7800B Subbase
|
|
Approvals, Underwriters Laboratories Inc
|
Component Recognized, File No. MP268; Guide No. MCCZ.
|
|
Approvals, Canadian Standards Association
|
Certified, File No. LR95329-3.
|
|
Approvals, Control Safety Devices
|
Acceptable: CSD-1
|
|
Approvals, Federal Communications Commission
|
FCC Part 15, Class B, Emissions.
|
|
Approvals, Swiss RE (formerly IRI)
|
Acceptable
|
|
Approvals, Factory Mutual
|
Report No. OX4A5.AF.
|
|
Used With
|
7800 Series Amplifers
|
|
|
