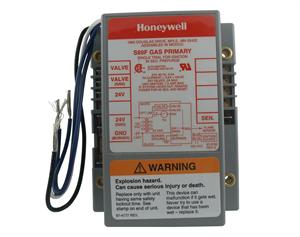

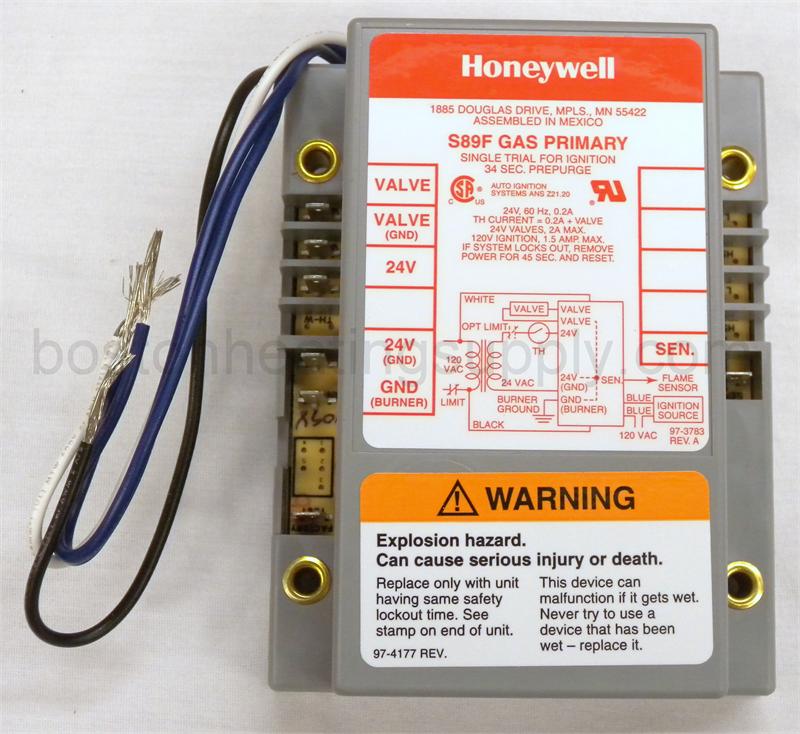

Honeywell S89F1098 Two Rod Direct Spark Ignition Control
MSRP: $265.62
Price: $161.69
You Save: $103.93 (39 %)
Please check for availability
Item Number: 21457
Manufacturer Name: Honeywell
Manufacturer Part No: S89F1098
|
|
Product Manuals and Downloads:
Product Data
Installation Instructions
Provide electronic control of
direct spark ignition systems, with external spark transformers, used
on gas-fired furnaces, boilers, conversion burners and other heating
appliances.
| Features
|
|
• Controls ignition sequence and gas control operation in direct spark ignition systems.
• Control separate 120 Vac spark generator that provides high voltage potential for main burner ignition.
• Lockout after one trial for ignition if main burner fails to ignite.
• Reset from thermostat after lockout. Use separate electrodes for spark ignition and flame sensing.
• Use any 24 Vac combination gas control designed for direct spark applications and rated at 2.0A or less.
|
Product Specifications
|
|
|
|
Description
|
Provide electronic control of direct spark ignition systems used on gas fired furnaces, boilers, and other heating appliances.
|
|
Ignition System Type
|
Direct Spark Ignition
|
|
Ignition Sequence
|
Single trial for main burner ignition (then shut down and lockout)
|
|
Typical Gas Control
|
VR8205, VR8305
|
|
Type of Gas
|
Natural or LP
|
|
Ignition Source
|
External (120 VAC powered) High Voltage Spark Generator
|
|
Ignition Trials To Lockout
|
1
|
|
Ignition Trial Time (sec)
|
4 sec.
|
|
Maximum Valve Load @ 24 Vac (Amps)
|
2A
|
|
Typical Ignition Hardware
|
Q652, Q345
|
|
Dimensions (in.)
|
5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long
|
|
Dimensions (mm)
|
133 mm high x 103 mm wide x 49 mm deep
|
|
Electrical Ratings
|
24 Vac
|
|
Maximum Ambient Temperature (F)
|
-40 F to +175 F
|
|
Maximum Ambient Temperature (C)
|
-40 C to +79 C
|
|
Approvals, Canadian Standards Association
|
Design Certified
|
|
Flame Failure Response Time (sec)
|
2.0 sec. @ 2.5 microamp
|
|
Flame Failure Re-ignition Time (sec)
|
0.8 sec. maximum
|
|
|
