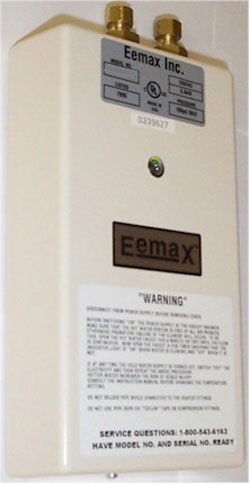

Eemax SP4277 Single Point
Item Number: 21256
Manufacturer Name: Eemax Inc.
Manufacturer Part No: SP4277
|Product Manuals and Downloads:
Eemax SP4277 Spec Sheet
Eemax SP4277 Installation/Owner's Manual
Eemax SP4277 Troubleshooting Manual
The Eemax SP4277 "Single Point" Electric Tankless Water Heater to serve one commercial type sink as found in public hand washing areas, modular buildings and offices, strip malls, service stations and concession stands.
Eemax SP4277 "Single Point" Electric Tankless Water Heater Features:
On Demand Hot Water - no delay.
Cut Energy Waste -flow switch activates heater only on demand (no standby heat loss).
Continuous Hot Water - no storage capacity to run out.
Reduces Installation Cost - no T & P relief valve needed (check local codes).
Easy Installation - only one cold water line need be brought to lavatory - integral 3/8" compression fittings on top (no sweat connections). Mounts on wall at point-of-use.
Flow Restrictor Faucet Aerator - with excellent spray pattern supplied with unit.
Hands Free - sensor and metering faucet compatible.
Prevents Legionella Bacteria Growth
Designed for Durability - constructed of high strength reinforced "ENGINEERING PLASTIC"
Ni Chrome Element - a unique, patented flow path ensures optimum heat transfer and extended element life.
Compact Size - dimensions 10.75"x5.25"x2.125"
Space Saving Installation - under sink, point-of-use.
Field Serviceable Element - replaceable cartridge element
Complies with handicap requirements.
Eemax SP4277 "Single Point" Electric Tankless Water Heater Applications:
Office and Tenant Spaces
Commercial Buildings (restaurants, etc.)
Modular Buildings/Modular Offices
Public Hand Washings
Various "Point-Of-Use" Needs
Eemax SP4277 "Single Point" Electric Tankless Water Heater Specifications:
Volts - 277V
KW - 4.1kW
Amps - 14.8A
Rise at 0.5 GPM - 56°F
Wire Size AWG - 10
Dimensions - 10.75" x 5.25" x 2.125"
Weight - 3 lbs
Element - Replaceable cartridge insert
Connections: 3/8" compression at top of unit
The voltage, amperage, and circuit breaker specifications must be met for this heater to function. Please make sure all requirements are met before purchasing this heater. Manufacturer's start up procedures must be observed.
