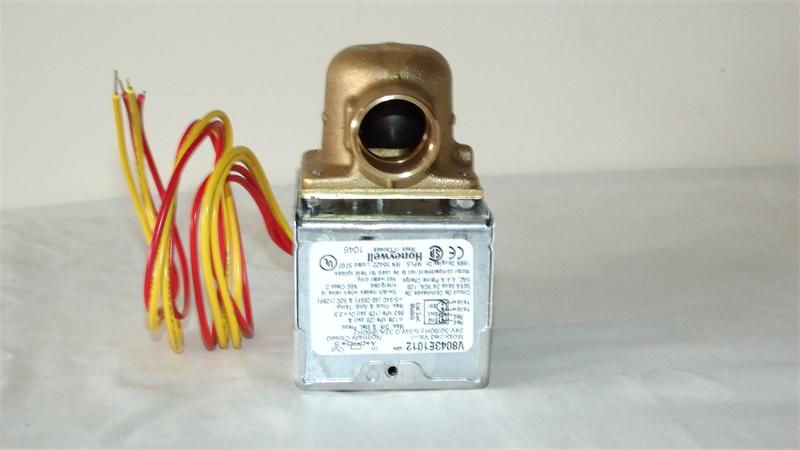

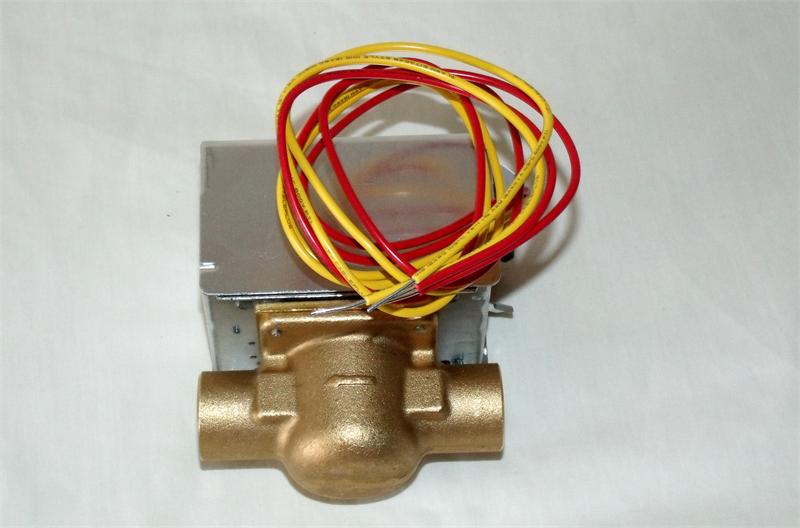

Honeywell V8043E1012 Motorized Zone Valve
MSRP: $123.76
Price: $75.33
You Save: $48.43 (39 %)
Item Number: 9322
Manufacturer Name: Honeywell
Manufacturer Part No: V8043E1012
|
|
Product Manuals and Downloads:
Honeywell V8043E1012 Product Data
Honeywell V8043E1012 Installation Instructions
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Features
|
|
• Manual opener (on all
models, except straight-through, normally open valves) for valve
operation on power failure; valve returns to automatic position when
power is restored.
• All models may be installed without disassembling the valve.
• Compact construction for easy installation.
• Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
• Actuator motor may be replaced without removing the valve body or draining the system.
|
Product Specifications
|
|
|
Description
|
Zone Valve 24V 3/4 in. Sweat, 3.5 Cv, 18 in. leads, end switch
|
|
Application
|
Hydronic Control
|
|
Body Pattern
|
Two-way, Straight-through
|
|
De-energized Position
|
Normally Closed
|
|
Maximum Close-off Pressure (psi)
|
20 psi
|
|
Maximum Close-off Pressure (kPa)
|
138 kPa
|
|
Fluid Temperature Range (F)
|
50 F to 200 F
|
|
Fluid Temperature Range (C)
|
10 C to 93 C
|
|
Electrical Connections (in.)
|
18 in. leads
|
|
Electrical Connections (mm)
|
457 mm leads
|
|
Valve Action
|
Spring return to close
|
|
Maximum Ambient Temperature (F)
|
125 F
|
|
Maximum Ambient Temperature (C)
|
52 C
|
|
Dimensions (in.)
|
4 in. high x 3 1/2 in. wide x 2 3/8 in. deep
|
|
Dimensions (mm)
|
102 mm high x 89 mm wide x 60 mm deep
|
|
Auxiliary End Switch
|
N.O. SPST
|
|
End Switch Rating
|
50 VA pilot duty @ 24 V
|
|
End Switch Rating
|
4.4 A running with 26.4 A inrush @ 120 V
|
|
Materials (Stem)
|
Stainless Steel
|
|
Materials (Ball Plug)
|
Buna-N (NBR) Rubber Ball
|
|
Materials (Packing O-rings)
|
EPDM rubber
|
|
Approvals, Underwriters Laboratories Inc
|
UL Listed: File MH11826
|
|
Comments
|
Valve designed for cycling (not constantly powered on) applications.
|
|
Comments
|
Use this
valve in closed loop hydronic systems that do not contain dissolved
oxygen in system water, such as fresh water from frequent source of
makeup water.
|
|
Tradeline Value
|
Tradeline
|
|
Nominal Open Timing (sec)
|
15 sec
|
|
Operating Humidity Range (% RH)
|
5 to 95% relative humidity, non-condensing.
|
|
Static Pressure Rating (psi)
|
125 psi
|
|
Static Pressure Rating (kPa)
|
862 kPa
|
|
|
Replaces L404A1354, 2 psi to 15 psi
|
