Description

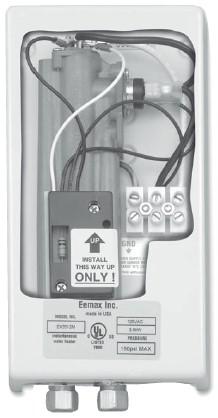

The Eemax EX55 "Flow Control" Electric Tankless Water Heater.
Recommended cold water feed. Turn on flow .7 GPM, max 2 GPM.
Eemax EX55 "Flow Control" Electric Tankless Water Heater Applications:
Kitchen Sinks
Bar Sinks
Utility Sinks
Manufacturing Facilities
Modular Buildings and Tenant Spaces
Hand Set Shower (.7 - 2 GPM)
Eemax EX55 "Flow Control" Electric Tankless Water Heater Features:
On Demand Hot Water - no delay.
Cut Energy Waste -flow switch activates heater only on demand (no standby heat loss).
Continuous Hot Water - no storage capacity to run out.
Reduces Installation Cost - no T & P relief valve needed (check local codes).
Easy Installation - only one cold water line need be brought to lavatory. Mounts on wall at point-of-use.
Hands Free - sensor and metering faucet compatible.
Prevents Legionella Bacteria Growth
Designed for Durability - constructed of high strength reinforced "ENGINEERING PLASTIC"
Ni Chrome Element - a unique, patented flow path ensures optimum heat transfer and extended element life.
Compact Size - dimensions 10.75"x5.25"x2.125"
Reduces Calcification.
Space Saving Installation - under sink, point-of-use.
Field Serviceable Element - replaceable cartridge element.
Complies with handicap requirements.
Eemax EX55 "Flow Control" Electric Tankless Water Heater Specifications:
EX = Bottom Water Connection, 1/2" compression fittings
Volts 240V
KW 5.5kW
Amps 23A
Rise at .5 GPM 75°F
Rise at .75 GPM 50°F
Rise at 1.0 GPM 38°F
Rise at 1.5 GPM 25°F
Wire Size AWG - 10
Dimensions - 10.75" x 5.25" x 2.125"
Weight - 3 lbs
Element - Replaceable cartridge insert
* The voltage, amperage, and circuit breaker specifications must be met for this heater to function. Please make sure all requirements are met before purchasing this heater. Manufacturer's start up procedures must be observed.
Details and Features
- Manufacturer and Model: Eemax EX55
- Color: White
- Oversize: No
