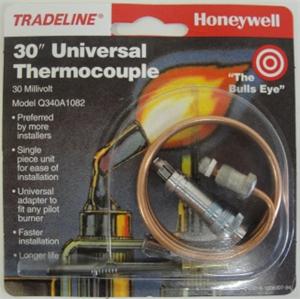

Honeywell - Q340A1082 - 30 mV Thermocouple with 11/32 32 Male Connector Nut Connection and 30 in. leads

Price: $6.31 Item Number: 11256 Manufacturer Name: Honeywell Manufacturer Part No: Q340A1082 Quantity:

View Larger Image

Thermocouples generate a thermoelectric current that senses a pilot flame on gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base. This temperature difference generates a small amount of DC power, measured in millivolts. Thermocouple Brochure Product Data Installation Instructions, Thermocouple Installation Instructions, Flame Rod Igniter Assembly Features  Push-in clip, split nut, and adapter assembly for easy pilot burner installation.  Spade or quick-connect terminals available for millivolt gas control connections.  Male nut connector for Pilotstat® safety control power units.  Available in a variety of lead lengths. Product Specifications Voltage 30 mV Connection Type 11/32 32 Male Connector Nut Lead Length (in.) 30 in. Lead Length (mm) 762 mm Open Circuit Output (mV) 26 mV to 32 mV Resistance 0.02 ohm Temperature Ratings (F) Hot Junction 1400 F Temperature Ratings (C) Hot Junction 760 C Temperature Ratings (F) Cold Junction 780 F Temperature Ratings (C) Cold Junction 416 C Includes Adapter and Push In Clip Tradeline Value Tradeline
