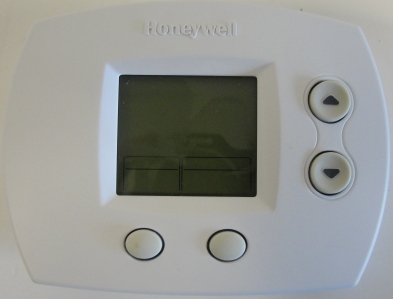

Honeywell - TH5110D1006 - Premier White Heating & Cooling Thermostat
|
Item Number: 42807
Manufacturer Name: Honeywell
Manufacturer Part No: TH5110D1006
|
|
The FocusPRO non-programmable
digital thermostat provides electronic control of 24 Vac conventional
and heat pump systems or 750 mV heating systems.
Installation Instructions
Installation Instructions 2
Operating Manual
| Features
|
|
Non-programmable digital thermostat.
Large, clear, backlit display - easy to read in various lighting conditions.
Display size options - available in large screen or standard.
Precise comfort control (+/- 1º F) - maintains consistent comfort to the highest level of accuracy.
Easy
change battery door - flip out door allows for easy battery replacement
without removing or disassembling the thermostat.
Up to 3 Heat/2 Cool Heat Pump or Up to 2 Heat/2 Cool Conventional.
Dual-powered (battery and/or hardwire).
|
Product Specifications
|
|
|
|
Description
|
Premier White® Heating & Cooling Thermostat
|
|
Application
|
Up to 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat
|
|
Changeover
|
Auto/Manual Selectable
|
|
Stages
|
Up to 1 Heat/1 Cool
|
|
Power Method
|
Dual Powered: Battery or Hardwire
|
|
Terminal Designations
|
R, Rc, C, W (O/B), Y, G
|
|
Switch Positions (Fan)
|
AUTO-ON
|
|
Switch Positions (System)
|
HEAT-OFF-COOL-AUTO
|
|
Dimensions (in.)
|
3 7/16 in. high x 4 1/2 in. wide x 1 5/16 in. deep
|
|
Dimensions (mm)
|
86 mm high x 114 mm wide x 33 mm deep
|
|
Setting Temperature Range (F)
|
Heat: 40 F to 90 F; Cool: 50 F to 99 F
|
|
Setting Temperature Range (C)
|
Heat: 4.5 C to 32 C; Cool: 10 C to 37 C
|
|
Electrical Ratings
|
20 to 30 Vac or 750 mV
|
|
Cycles per Hour
|
Heating 1-12 CPH; Cooling 1-6 CPH
|
|
Cool Current
|
1.0 A running
|
|
Heat Current
|
1.0 A running
|
|
Sensor Element
|
Thermistor
|
|
Operating Humidity Range (% RH)
|
5 to 90% RH, non-condensing
|
|
Comments
|
Standard display size 1.95 sq. in.
|
|
|
|
|
|
