Honeywell S8910U3000 Hot Surface Ignition Module

<< Previous in Honeywell Transformers / Relays Next in Honeywell Transformers / Relays >>
Price: $168.20
Item Number: S8910U3000
Manufacturer Name: Honeywell
Manufacturer Part No: S8910U3000

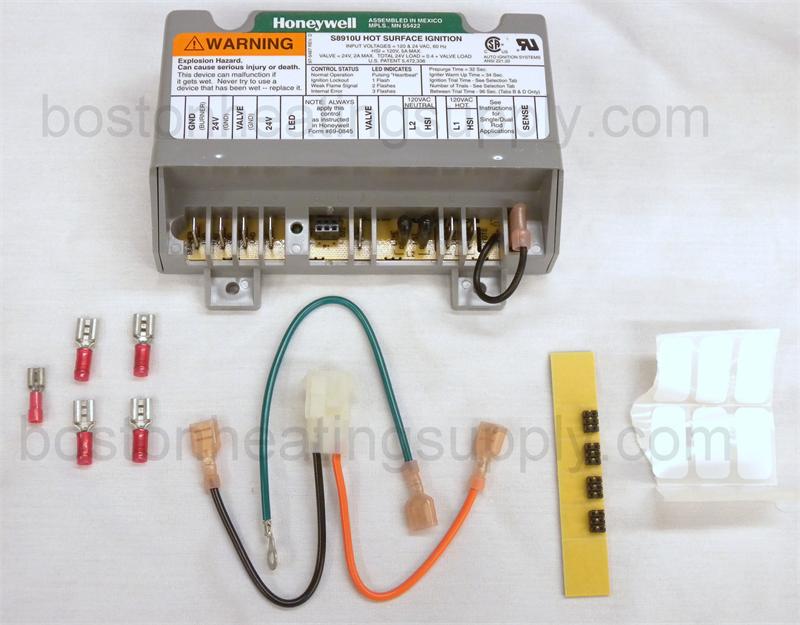

Honeywell S8910U1000 One or Two Rod Hot Surface Ignition Control

Product Manuals and Downloads:

Installation Instructions

Product Data

S8910U Sell Sheet

One or Two Rod Hot Surface Ignition Control 4 or 7 second trial time and 4 or 7 second lockout timing

Universal Hot Surface Ignition Module is designed to provide easy field replacement of a wide range of hot surface ignition modules manufactured by Honeywell, Robertshaw and White-Rodgers. The S8910U Module provides operating control of a direct ignition system using a 120 Vac hot surface igniter.


 Replaces many White-Rodgers, Robertshaw and Honeywell hot surface ignition models.
 For 120 Vac (up to 5.0A) surface igniter (Norton 201/271 or equivalent).
 For local (single rod) or remote (dual rod) rectification type flame sensing.
 Contains easy-to-use instructions plus the accessories required to adapt the existing hot surface ignition module.
 Provides one or three ignition trials (four-second or seven-second trials) per call for heat; prepurge of 32 seconds or less; up to 96 seconds between purge trial times.
 Temperature range is -40 to +175 F (-40 to +79 C).
