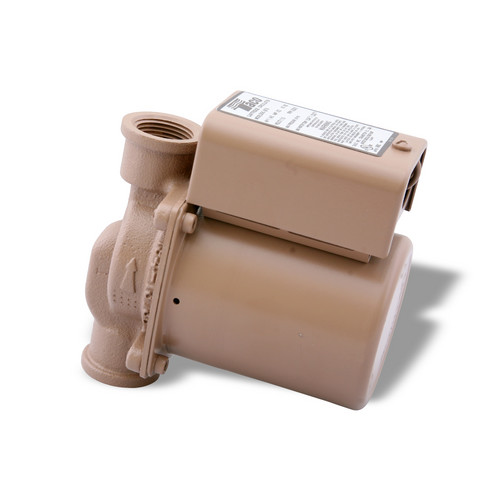

006-ST4 NPT Taco Bronze Circulator 3/4" Threaded

Product Manuals and Downloads:

"00" Series Cartridge Circulators

006 Circulator Catalog

006 Data Submittal Sheet

"00" Series Replacement Parts List

006 Performance Curve

006-ST4 NPT Taco Bronze Circulator 3/4" Threaded

Model 006 Cartridge Circulator



Performance Data
Flow Range: 0-10 GPM
Head Range: 0-9 Feet
Minimum Fluid Temperature: 40º F (4º C)
Maximum Fluid Temperature: 220º F (104º C)
Maximum Working Pressure: 125 PSI
Connection Sizes: 1/2”, 3/4” Sweat, 3/4” NPT, Union

The Taco 006 Cartridge Circulator is designed for circulating hot or chilled fresh water in open or closed -loop, lower-flow  applications.



• Unique, “00” family  replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit.
• Compact, low-power consumption design is ideal for high efficiency jobs.



Features

• Standard High Capacity Output
• Quiet, Efficient Operation
• Unique Replaceable Cartridge Design – Field Serviceable
• Direct Drive-Low Power Consumption
• Self-Lubricating
• No Mechanical Seal
• Unmatched Reliability --Maintenance Free
• Bronze Construction



Typical Applications:

• Domestic Hot Water Recirculation
• Hydro-Air Heating/Cooling
• Heat Recovery Units
• Water Source Heat Pumps
• Drain Down Open Loop Solar Systems
• Potable Water Systems
