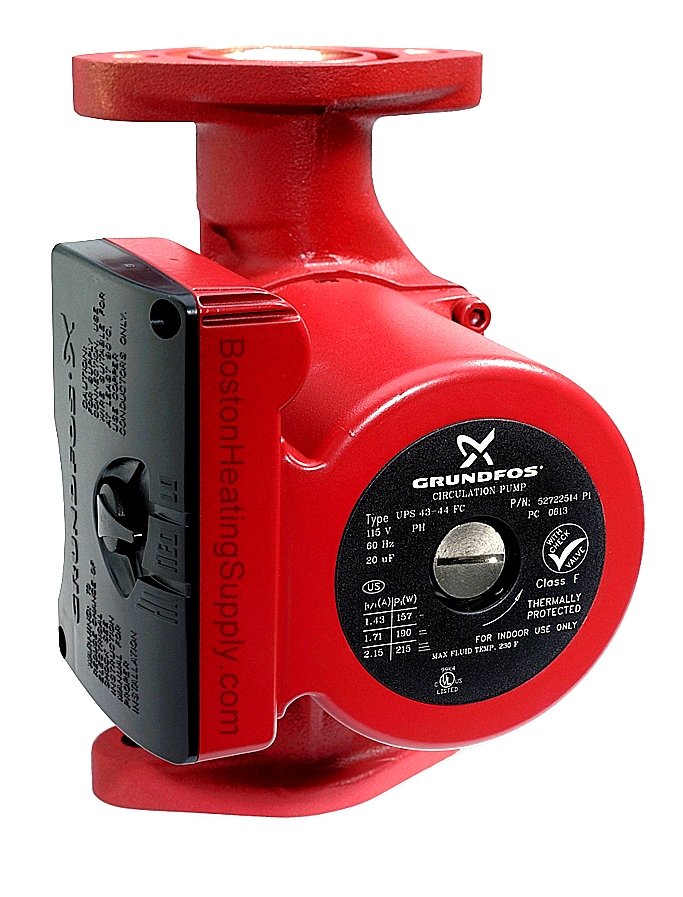

Grundfos 52722515 UPS 43-44 FC Circulator Pump

<< Previous in Grundfos UPS Series 100 & 200

Next in Grundfos UPS Series 100 & 200 >>

Price: $495.95

Item Number: 52722515

Manufacturer Name: Grundfos Pumps Corporation

Manufacturer Part No: UPS4344FC

Quantity:

Add to a new shopping list

Brochure & Specifications

UPS 43-44 FC

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. The pump is characterized by:

Ceramic shaft and radial bearings.
Carbon axial bearing.
Stainless steel rotor can and bearing plate.
Corrosion-resistant impeller, Composite, PES.
Cast iron pump housing.

The motor is a 1-phase motor. No additional motor protection is required.
performance-curve

Product name	UPS 43-44 FC
Product No.	52722515
EAN	5700834818738

Technical

Speed Number	3
Max flow	63 US gpm
	63 US gpm
Head max	14.11 ft
	14.11 ft
Approvals on nameplate	UL, CSA
Valve	pump with built-in isolating and non-return valves

Materials

Pump housing	Cast iron
	EN-JL1030
	ASTM 30 B
Impeller	Composite, PES

Installation

t max amb	104 °F
Ambient max at 176°F liquid	176 °F
Maximum operating pressure	145.04 psi
Flange standard	USA Oval
Type of connection	C.I. Flange
Pipe connection	2 - Bolt Flange
Pressure stage	PN 10
Port-to-port length	8 1/2 in

Liquid

Pumped liquid	Water
Liquid temperature range	35.6 .. 230 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³

Electrical data

Power input in speed 1	0.2105 HP
Power input in speed 2	190 W
Max. power input	203 W
Main frequency	60 Hz
Rated voltage	1 x 230 V
Current in speed 1	0.7 A
Current in speed 2	0.8 A
Current in speed 3	0.9 A
Capacitor size - run	5 µF/400 V
Number of poles	2
Insulation class (IEC 85)	F
Built-in motor protection	CONTACT
Thermal protec	internal

Controls

Pos term box

Others

Gross weight

13.5 lb
