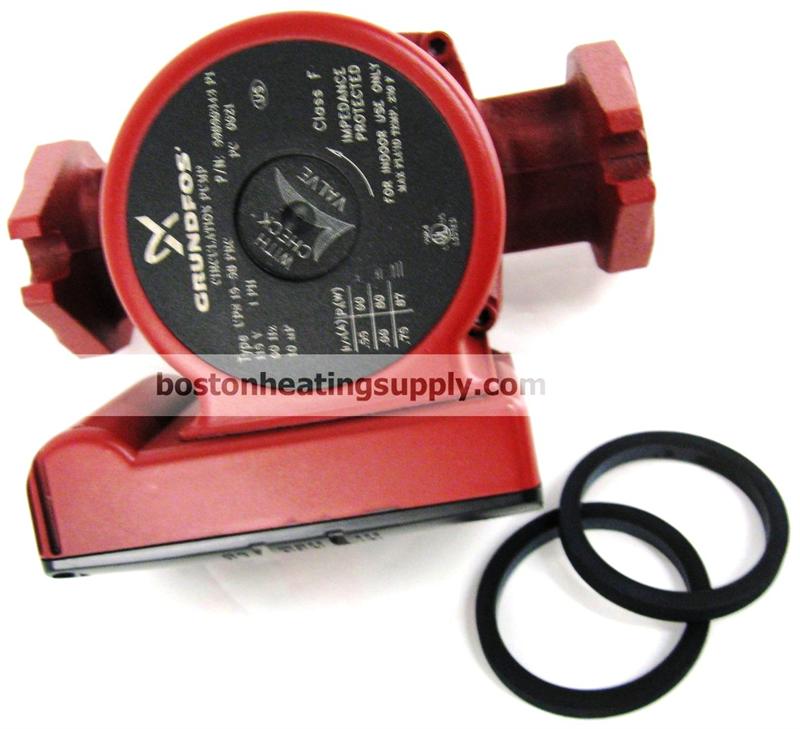

Grundfos 59896343 UPS 15-58 FRC Circulator Pump

<< Previous in Grundfos UPS Series 200 Next in Grundfos UPS Series 200 >>
Price: $115.82
Item Number: 59896343
Manufacturer Name: Grundfos
Manufacturer Part No: UPS1558FRC

Brochure & Specifications

UPS 15-58 FRC

The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. The pump is characterized by:

  • Ceramic shaft and radial bearings.
  • Carbon axial bearing.
  • Stainless steel rotor can and bearing plate.
  • Corrosion-resistant impeller, Composite, PES.
  • Cast iron pump housing.

The motor is a 1-phase motor. No additional motor protection is required.
performance-curve

Product name UPS 15-58 FRC
Product No. 59896343
EAN 5700395856408

Technical

Speed Number 3
Max flow 17.2 US gpm
17.2 US gpm
Head max 19.36 ft
19.36 ft
Approvals on nameplate UL, CSA
Valve pump with built-in isolating and non-return valves

Materials

Pump housing Cast iron
EN-JL1030
ASTM 30 B
Impeller Composite, PES

Installation

t max amb 104 °F
Ambient max at 176°F liquid 176 °F
Maximum operating pressure 145.04 psi
Flange standard USA Oval
Type of connection C.I. Flange
Pipe connection 2 - Bolt Flange, Rotated
Pressure stage PN 10
Port-to-port length 6 1/2 in

Liquid

Pumped liquid Water
Liquid temperature range 35.6 .. 230 °F
Selected liquid temperature 140 °F
Density 61.35 lb/ft³

Electrical data

Power input in speed 1 0.0805 HP
Power input in speed 2 80 W
Max. power input 87 W
Main frequency 60 Hz
Rated voltage 1 x 115 V
Current in speed 1 0.55 A
Current in speed 2 0.66 A
Current in speed 3 0.75 A
Capacitor size - run 10 µF/180 V
Number of poles 2
Insulation class (IEC 85) F
Built-in motor protection CONTACT
Thermal protec internal

Controls

Pos term box 9H

Others

Gross weight 7.25 lb
