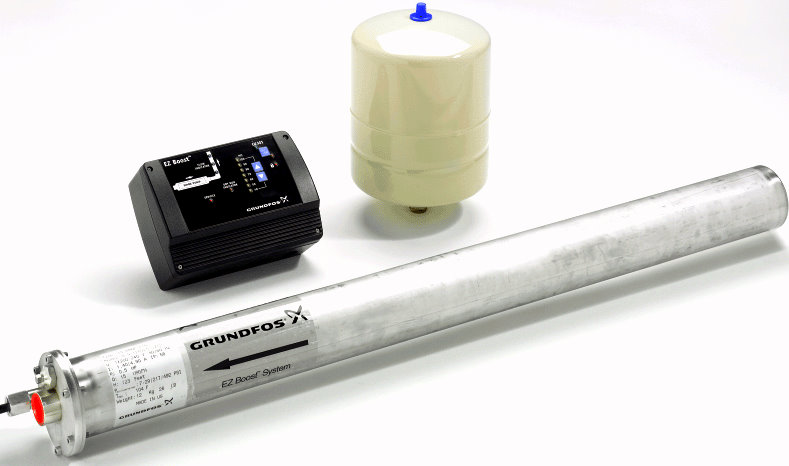

Grundfos 91128526 15 BMQE 07B-180 EZ Boost Pressure Boosting Pump
|
Item Number: 91128526
Manufacturer Name: Grundfos Pumps Corporation
Manufacturer Part No: 15 BMQE 07B-180
* Whole number only
|
|
Brochures And Specifications
| Product name |
15 BMQE 07B-180 |
| Product No. |
91128526 |
| EAN |
5700396363318 |
| Price |
|
Technical
| Rated flow |
13.2 US gpm |
| Rated head |
229.7 ft |
| Stages |
5 |
| Approvals on motor nameplate |
UL,CUL |
| Pump Number |
96397419 |
| Model |
B |
Materials
| Pump |
Polyethylene / Stainless steel |
|
DIN W.-Nr. 1.4301 |
|
AISI 304 |
| Motor |
Stainless steel |
|
DIN W.-Nr. 1.4301 |
|
AISI 304 |
| Sleeve |
Stainless steel |
|
DIN W.-Nr. 1.4401 |
|
AISI 316 |
| Rubber |
NBR |
Installation
| Maximum operating pressure |
333.59 psi |
| Minimum inlet pressure |
7.98 psi |
| Pump inlet |
1,25" NPT |
| Pump outlet |
1,0" NPT |
Liquid
| Pumped liquid |
Water |
| Maximum liquid temperature |
95 °F |
| Max liquid temperature at 0.15 m/sec |
95 °F |
| Selected liquid temperature |
68 °F |
| Density |
62.29 lb/ft³ |
Electrical Data
| Motor type |
MSE3 |
| Power input - P1 |
1.65 kW |
| Rated power - P2 |
1.54 HP |
| Main frequency |
60 Hz |
| Rated voltage |
1 x 200-240 V |
| Service factor |
2.05 |
| Rated current |
8.4 A |
| Power factor |
1.00 |
| Rated speed |
10700 rpm |
| Start. method |
direct-on-line |
| Enclosure class (IEC 34-5) |
IP68 |
| Insulation class (IEC 85) |
F |
| Built-in motor protection |
Y |
| Thermal protec |
internal |
| Length of cable |
4.92 ft |
| Motor Number |
96160540 |
Controls
| CU 300/CU 301 |
communication with CU 300/CU 301 possible |
Others
| Net weight |
30.9 lb |
| Shipping volume |
0.88 ft³ |
| Sales region |
Namreg |
|
Price: Please call to order
