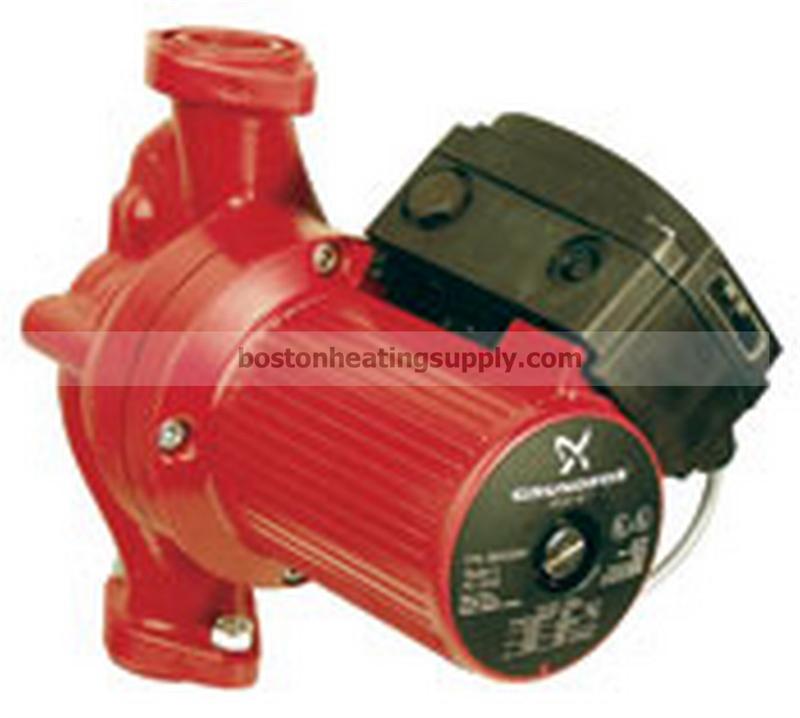

Grundfos 96402814 UPS 50-40 F Circulator Pump
|
Item Number: 96402814
Manufacturer Name: Grundfos Pumps Corporation
Manufacturer Part No: UPS50-40
* Whole number only
|
|
Brochure & SpecificationsUPS 50-40 FThe pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid.
In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible. The pump is characterized by:
- 3 speed motor.
- Ceramic radial bearings.
- Carbon axial bearing.
- Stainless steel rotor can, bearing plate and rotor cladding.
- Aluminium alloy stator housing.
- Cast iron pump housing.
- Stator with built-in thermal switch.
|
|
The motor is a 1-phase motor.
| Product name |
UPS 50-40 F |
| Product No. |
96402814 |
| EAN |
5700390682408 |
| Price |
|
Technical
| Speed Number |
3 |
| Head max |
13.12 ft |
| Approvals on nameplate |
CUL |
| Model |
C |
Materials
| Pump housing |
Cast iron |
|
EN-JL1040 |
|
ASTM 35 B - 40 B |
| Impeller |
Stainless steel |
|
DIN W.-Nr. 1.4301 |
|
AISI 304 |
Installation
| Range of ambient temperature |
32 .. 104 °F |
| Maximum operating pressure |
145.04 psi |
| Flange standard |
USA |
| Type of connection |
F |
| Pipe connection |
GF 50 |
| Pressure stage |
145 psi |
| Port-to-port length |
14 in |
Liquid
| Pumped liquid |
Water |
| Liquid temperature range |
14 .. 248 °F |
| Selected liquid temperature |
140 °F |
| Density |
61.35 lb/ft³ |
Electrical data
| Power input in speed 1 |
0.2736 HP |
| Power input in speed 2 |
244 W |
| Max. power input |
285 W |
| Main frequency |
60 Hz |
| Rated voltage |
1 x 115 V |
| Current in speed 1 |
2.2 A |
| Current in speed 2 |
2.6 A |
| Current in speed 3 |
2.66 A |
| Cos phi in speed 1 |
0.81 |
| Cos phi in speed 2 |
0.82 |
| Cos phi |
0.93 |
| Capacitor size - run |
30 µF/400 V |
| Enclosure class (IEC 34-5) |
X4D |
| Insulation class (IEC 85) |
F |
| Built-in motor protection |
CONTACT |
| Thermal protec |
internal |
| R a |
6.55 - 8.55 ohm |
| R s1 |
1.12 - 2.8 ohm |
| R s2 |
4.3 - 5.65 ohm |
Controls
| Relay |
with relay |
| Pos term box |
1.30H |
Others
| Net weight |
48.7 lb |
| Gross weight |
51.2 lb |
| Shipping volume |
2.08 ft³ |
| Sales region |
Namreg |
|
Flange Set Includes: 2 each - Flanges, Gaskets; 4 each - 7/16"x1-1/2" Bolts w. Nuts - GF50 Flange
| | |
