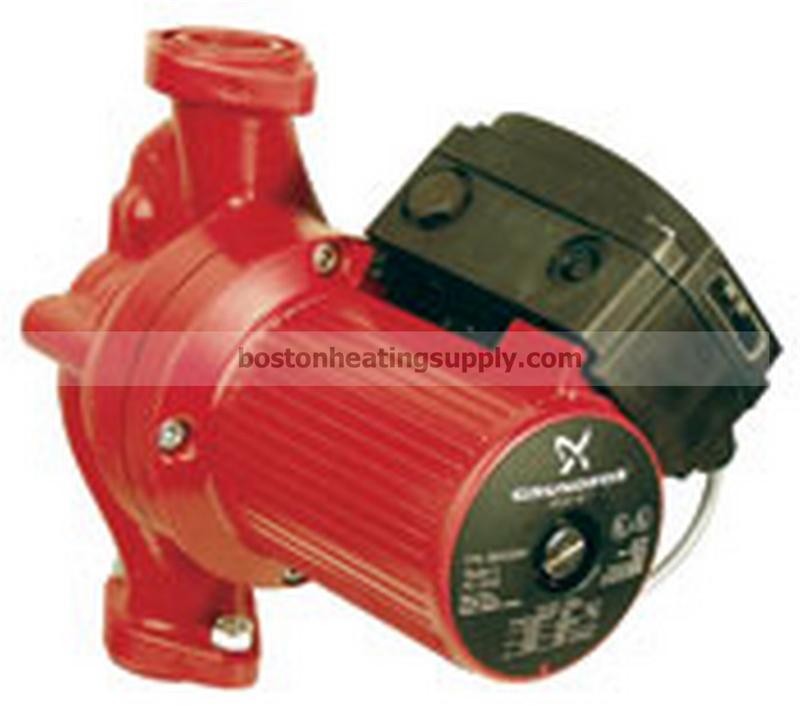

Grundfos 96402816 UPS 50-40 F Circulator Pump

<< Previous in Grundfos UPS Series 100 & 200

Next in Grundfos UPS Series 100 & 200 >>

Price: $1,077.84

Item Number: 96402816

Manufacturer Name: Grundfos Pumps Corporation

Manufacturer Part No: UPS5040F

Quantity:

Add to a new shopping list

Brochure & Specifications

UPS 50-40 F
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid.

In order to avoid problems in connection with disposal, great importance has been attached to using as few different materials as possible. The pump is characterized by:

3 speed motor.
Ceramic radial bearings.
Carbon axial bearing.
Stainless steel rotor can, bearing plate and rotor cladding.
Aluminium alloy stator housing.
Cast iron pump housing.
Stator with built-in thermal switch.

The motor is a 3-phase motor.

Product name	UPS 50-40 F
Product No.	96402816
EAN	5700390682491
Price

Technical

Speed Number	3
Maximum head	13.12 ft
Approvals	CCSAUS
Model	C

Materials

Pump housing	Cast iron
	EN 1561 EN-GJL-250
	ASTM 35 B - 40 B
Impeller	Stainless steel
	EN 1.4301
	AISI 304

Installation

Range of ambient temperature	32 .. 104 °F
Maximum operating pressure	145.04 psi
Type of connection	DIN
Pipe connection	GF 50
Pressure rating for connection	PN 10
Port-to-port length	14 in
Connect code	F

Liquid

Pumped liquid	Water
Liquid temperature range	14 .. 248 °F
Selected liquid temperature	140 °F
Density	61.35 lb/ft³

Electrical data

Power input in speed 1	0.2012 HP
Power input in speed 2	170 W
Max. power input	270 W
Main frequency	60 Hz
Rated voltage	3 x 208-230 V
Current in speed 1	0.54 A
Current in speed 2	0.66 A
Current in speed 3	1.4 A
Cos phi in speed 1	0.7
Cos phi in speed 2	0.65
Cos phi	0.48
Enclosure class (IEC 34-5)	X4D
Insulation class (IEC 85)	F
Built-in motor protection	CONTACT
Thermal protec	external
Winding resistance	57.5 - 75.0 ohm
