Honeywell AT140A1000 40VA Transformer, 120V-24V
MSRP: $19.58
Price: $13.53
You Save: $6.05 (31 %)
Item Number: 14868
Manufacturer Name: Honeywell
Manufacturer Part No: AT140A1000
|
|
Provide power to 24 Vac circuits
in heating/cooling control systems. Intended for use in systems with
predictable, uniform loads. Can be used in any application that does
not exceed the listed ratings.
Installation Instructions
Product Data
| Features
|
|

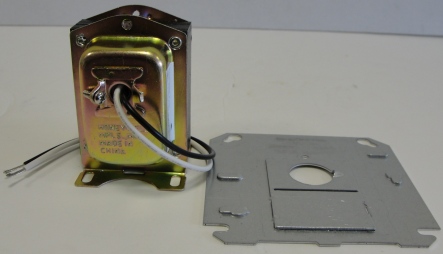

• Color-coded leadwires for
primary connections and screw terminals for secondary connections,
fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for
both primary and secondary, are standard.
• Meet NEC Class 2 requirements.
• Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
|
Product Specifications
|
|
|
|
Description
|
Foot mounted, plate mounted, clamp mounted or panel mounted 120 Vac Transformer with Metal end bells
|
|
Electrical Ratings -Primary Voltage
|
120 Vac
|
|
Electrical Ratings -Secondary Voltage
|
27 V.O.C.
|
|
Mounting
|
Foot mounted, plate mounted on 2x4 in. or 4x4 in. outlet box, clamp mounted using outlet box knockout, or panel mounted
|
|
Electrical Connections (Primary)(in.)
|
9 in. leadwires
|
|
Electrical Connections (Primary)(mm)
|
229 mm leadwires
|
|
Electrical Connections (Secondary)(in.)
|

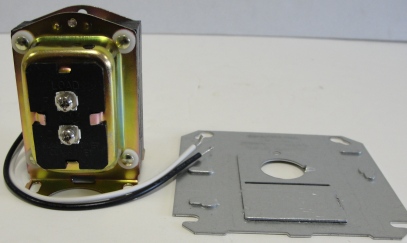

(2) screw terminals
|
|
Electrical Connections (Secondary)(mm)
|
(2) screw terminals
|
|
Electrical Ratings -Output
|
24 Vac at 40 VA
|
|
Dimensions (in.)
|
3 3/16 in. high x 2 3/8 in. wide x 3 1/8 in. deep
|
|
Dimensions (mm)
|
81 mm high x 60 mm wide x 79 mm deep
|
|
Temperature Ratings (F)
|
-20 F to +105 F
|
|
Temperature Ratings (C)
|
-29 C to +41 C
|
|
Approvals, Underwriters Laboratories Inc
|
UL Listed: A,C,F models. File # E14881
|
|
Approvals, Canadian Standards Association
|
CSA Certified: A & B models.
|
|
|
