Honeywell AT140A1018 Vac Transformer

<< Previous in Honeywell Thermostats Next in Honeywell Thermostats >>
Price: $17.01
Item Number: 46135
Manufacturer Name: Honeywell
Manufacturer Part No: AT140A1018

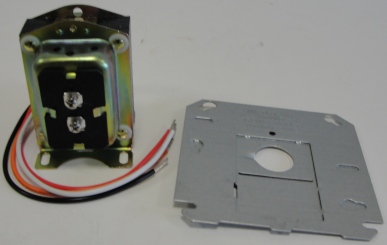

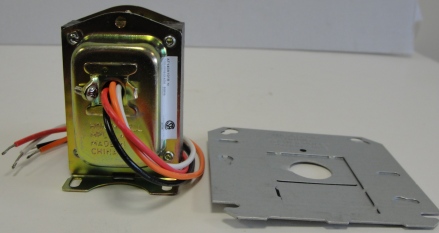

Honeywell AT140A1018 Vac Transformer
Honeywell AT140A1018 Vac TransformerHoneywell AT140A1018 Vac Transformer
Foot mounted 120/208/240 Vac Transformer with 9 in. lead wires and metal end bells

Provide power to 24 Vac circuits in heating/cooling control systems. Intended for use in systems with predictable, uniform loads. Can be used in any application that does not exceed the listed ratings.

Installation Instructions

Product Data

Features

 Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
 Meet NEC Class 2 requirements.
 Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.

Product Specifications


Description Foot mounted 120/208/240 Vac Transformer with 9 in. lead wires and metal end bells
Electrical Ratings -Primary Voltage 120 Vac, 208 Vac, 240 Vac
Electrical Ratings -Secondary Voltage 27 V.O.C.
Frequency 60 Hz
Mounting Foot mounted, plate mounted on 2x4 in. or 4x4 in. outlet box, clamp mounted using outlet box knockout, or panel mounted
NEMA Rating No
Electrical Connections (Primary)(in.) 9 in. leadwires
Electrical Connections (Primary)(mm) 229 mm leadwires
Electrical Connections (Secondary)(in.) (2) screw terminals
Electrical Connections (Secondary)(mm) (2) screw terminals
Electrical Ratings -Output 24 Vac at 40 VA
Dimensions (in.) 3 3/16 in. high x 2 3/8 in. wide x 3 1/8 in. deep
Dimensions (mm) 81 mm high x 60 mm wide x 79 mm deep
Temperature Ratings (F) -20 F to +105 F
Temperature Ratings (C) -29 C to +41 C
Approvals, Underwriters Laboratories Inc UL Listed: A,C,F models. File # E14881
Approvals, Canadian Standards Association CSA Certified: A & B models.
Includes Metal end bells
