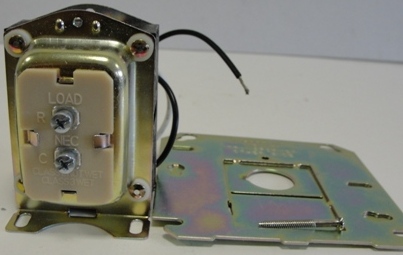

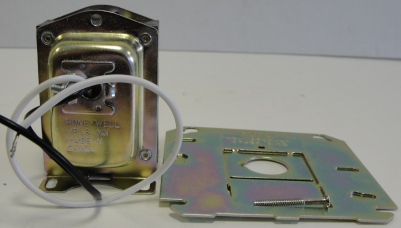

Honeywell AT72D1683 24V, 40VA Multi-Mount Transformer
MSRP: $31.42
Price: $19.13
You Save: $12.29 (39 %)
Item Number: 9721
Manufacturer Name: Honeywell
Manufacturer Part No: AT72D1683
|
|
24V control circuit step-down
transformer designed to power any 24V control system, including
thermostats, gas valves and relays.
Installation Instructions
Product Data
| Features
|
|
• Override protection provided.
• Color-coded leadwires for primary connections.
• Energy limiting, meets NEMA Standard DC20-1992.
• Transformer is marked NEMA Type D.
• Meets NEC Class 2 not wet, Class 3 wet and U.L. 1585 requirements.
• Mount within proper enclosure.
|
Product Specifications
|
|
|
|
Description
|
Foot mounted, plate mounted, or clamp mounted 120 Vac Transformer with 9 in. lead wires
|
|
Electrical Ratings -Primary Voltage
|
120 Vac
|
|
Electrical Ratings -Secondary Voltage
|
26.5 V.O.C.
|
|
Mounting
|
Can be
foot mounted, plate mounted on 4 x 4 in., 4 in. octagon, or 2 x 4 in.
electrical boxes (transformer all above plate or 3/4 above plate); or
clamp mounted via a junction box knockout.
|
|
Electrical Connections (Primary)(in.)
|
9 in. leadwires
|
|
Electrical Connections (Primary)(mm)
|
229 mm leadwires
|
|
Electrical Connections (Secondary)(in.)
|
(2) screw terminals
|
|
Electrical Connections (Secondary)(mm)
|
(2) screw terminals
|
|
Electrical Ratings -Output
|
24 Vac at 40 VA
|
|
Dimensions (in.)
|
3 7/32 in. high x 2 7/32 in. wide x 3 1/16 in. deep
|
|
Dimensions (mm)
|
81.8 mm high x 56.4 mm wide x 77.8 mm deep
|
|
Temperature Ratings (F)
|
-20 F to +105 F
|
|
Temperature Ratings (C)
|
-29 C to +41 C
|
|
Approvals, Underwriters Laboratories Inc
|
UL Component Recognized.
|
|
Approvals, Canadian Standards Association
|
Certified
|
|
Approvals, N.E.C.
|
NEC Approved.
|
|
