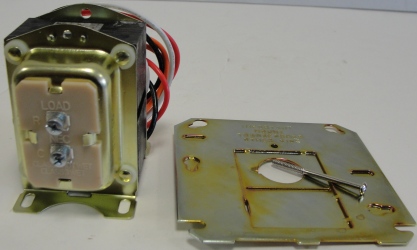

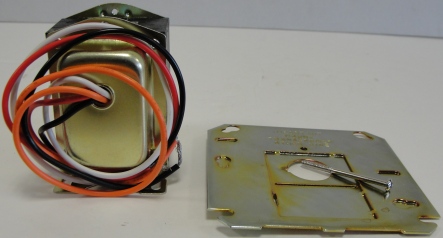

Honeywell AT87A1106 Multimount Transformer, 24V, 50VA
MSRP: $44.56
Price: $30.80
You Save: $13.76 (31 %)
Item Number: 45356
Manufacturer Name: Honeywell
Manufacturer Part No: AT87A1106
|
|
Used primarily for powering 24V
air conditioning circuits. Can also be used in other applications that
do not exceed the listed ratings.
Installation Instructions
Product Data
| Features
|
|
• Meets NEC Class 2 not wet, Class 3 wet and UL 1585 requirements.
• Transformer marked NEMA Type E.
• Overload protection provided.
• Color-coded leadwires for primary connections.
|
Product Specifications
|
|
|
|
Description
|
Foot or plate mounted 120/208/240 Vac Transformer with 13 in. lead wires, built in protection and primary winding burnout
|
|
Electrical Ratings -Primary Voltage
|
120 Vac, 208 Vac, 240 Vac
|
|
Electrical Ratings -Secondary Voltage
|
26.5 V.O.C.
|
|
Mounting
|
Foot mounted or 4x4 in plate.
|
|
Electrical Connections (Primary)(in.)
|
13 in. leadwires
|
|
Electrical Connections (Primary)(mm)
|
330 mm leads
|
|
Electrical Connections (Secondary)(in.)
|
(2) screw terminals
|
|
Electrical Connections (Secondary)(mm)
|
(2) screw terminals
|
|
Electrical Ratings -Output
|
24 Vac at 48 VA
|
|
Dimensions (in.)
|
2 15/16 in. deep x 2 7/32 wide
|
|
Dimensions (mm)
|
74.6 mm deep x 65.4 mm wide
|
|
Temperature Ratings (F)
|
-20 F to +105 F
|
|
Temperature Ratings (C)
|
-29 C to +41 C
|
|
Approvals, Underwriters Laboratories Inc
|
UL Component Recognized.
|
|
Approvals, Canadian Standards Association
|
Certified
|
|
Includes
|
Built-in protection. Primary winding burnout.
|
|
