Eemax EX8208T Series Three
|
Item Number: 44601
Manufacturer Name: Eemax Inc.
Manufacturer Part No: EX8208T
* Whole number only
|
|

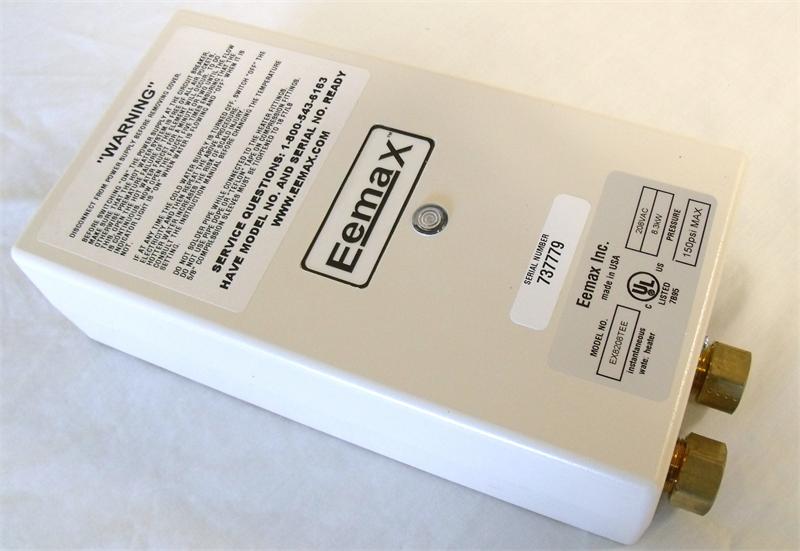

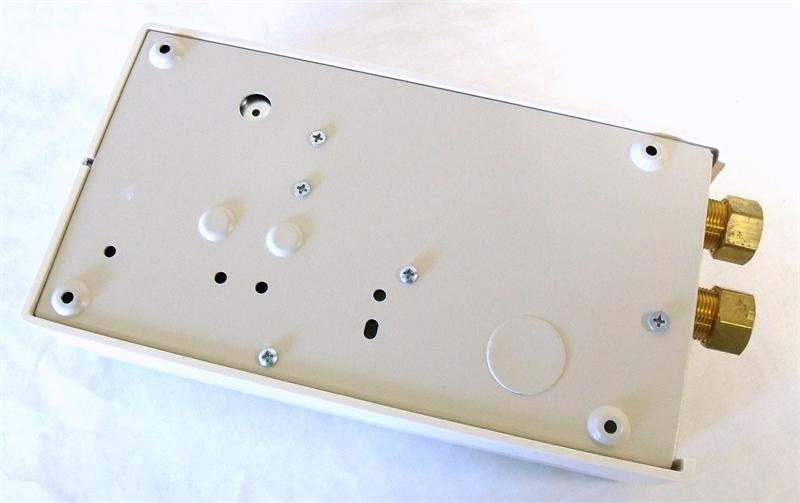

The Eemax EX8208T "Thermostatic" Electric Tankless Water Heater. To serve as a booster, eliminating long pipe runs, boosters for dishwashers and sanitation. Applications where precise temperature control is essential such as schools, hospitals and laboratories. Meets ANSI Z358.1 tepid water requirements for emergency eyewash. Anti-scale protection. Recommended for hot or cold water feed, microprocessor temperature control for accurate temperature. Fitted with 1/2" copper pipe compression fittings. Standard range 100 to 140ÃÃðF. Turn on .7 GPM, max 2 GPM.
Eemax EX8208T "Thermostatic" Electric Tankless Water Heater Features:
Fully Adjustable Temperature Range between 100-140ÃÃðF. Special settings of higher or lower range available upon request.
Eliminate costly mixing valves.
On Demand Hot Water - no delay.
Continuous Hot Water - no storage capacity to run out.
Reduces Installation Cost - no T & P relief valve needed (check local codes).
Easy Installation - only one cold water line need be brought to installation - integral 1/2" compression fittings on bottom (no sweat connections).
Cut Energy Waste -flow switch activates heater only on demand (no standby heat loss).
Thermostatic control reduces wide temperature fluctuation.
Prevents Legionella Bacteria Growth.
Meets ANSI Z358.1 Tepid Water Requirements.
Anti-scald Protection.
Designed for Durability - constructed of high strength reinforced "ENGINEERING PLASTIC".
Ni Chrome Element - a unique, patented flow path ensures optimum heat transfer and extended element life.
Compact Size - dimensions 10.75"x5.25"x2.125"; weight 3 lbs.
Reduces calcification.
Space Saving Installation - under sink, point-of-use.
Field Serviceable Element - replaceable cartridge element.
Complies with handicap requirements.
Eemax EX8208T "Thermostatic" Electric Tankless Water Heater Applications:
Boosters (to 180ÃÃð F)
Metering and sensor faucet compatible
Low volume shower handset (.7 - 2 GPM)
Schools/Hospitals/Nursing Homes/Laboratories
Eliminate wait for hot water, long pipe runs
Maintains accurate temperature continuously +/- 0.5ÃÃðF
Eemax EX8208T "Thermostatic" Electric Tankless Water Heater Specifications:
Dimensions 10.75" x 5.25" x 2.125"
Weight 3 lbs
Volts 208V
KW 8.3kW
Amps 40A
Rise at 0.75 GPM 76ÃÃðF
Rise at 1.0 GPM 57ÃÃðF
Rise at 1.5 GPM 38ÃÃðF
Wire Size AWG 10
Element - Replaceable cartridge insert
Connections: 1/2" compression
Eemax EX8208T "Thermostatic" Electric Tankless Water Heater Thermostat Accuracy:
Thermostatic board maintains +/-0.5ÃÃðF accuracy.
Achieves full, pre-selected outlet temperature within 10 seconds after activation.
Maintains consistent temperature.
Units can be used at 208V with 25% reduced output.
The voltage, amperage, and circuit breaker specifications must be met for this heater to function. Please make sure all requirements are met before purchasing this heater. Manufacturer's start up procedures must be observed.
Settings:
S- Sanitation setting 180ÃÃð
FS- Factory Set temp. (ambient to 180ÃÃð)
ML- Multi Lav Ideal for one, two, three, lavs @ 5GPM. Will Maintain constant temp.
EE- Emergency Eye Wash. Specify for Tepid Water requirements
|
