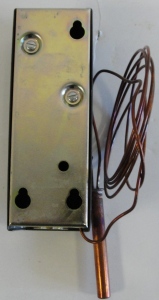

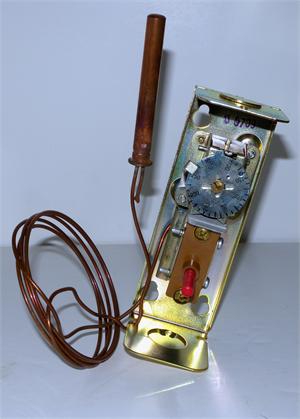

Honeywell L4008E1156 High Limit Remote Bulb Aquastat
MSRP: $183.50
Price: $111.69
You Save: $71.81 (39 %)
Item Number: 7726
Manufacturer Name: Honeywell
Manufacturer Part No: L4008E1156
|
|
High Limit; Manual Reset Aquastat Controller with 130 F to 270 F operating temperature and 66 in. capillary
For limiting or regulating temperature of liquids in boilers or tanks. Can also sense duct or outside air temperature.
Product Data
Installation Instructions
| Features
|
|
• Remote temperature sensing element detects and responds rapidly to temperature changes.
• Totally enclosed Micro Switch™ snap-acting switch.
• Visible control point scale and external adjustment screw permit easy setting.
• Horizontal or vertical mounting of the remote element into boiler, tank, or other container.
• Case mounts to a vertical surface.
|
Product Specifications
|
|
|
|
Description
|
High Limit; Manual Reset Aquastat Controller with 130 F to 270 F operating temperature and 66 in. capillary
|
|
Application
|
High Limit; Manual Reset
|
|
Bulb Size (in.)
|
3/8 in. x 2 7/8 in. copper
|
|
Bulb Size (mm)
|
10 mm x 73 mm copper
|
|
Capillary Length (in.)
|
66 in.
|
|
Switching Action
|
SPST, contacts break on temperature rise.
|
|
Operating Temperature Range (F)
|
130 F to 270 F
|
|
Operating Temperature Range (C)
|
54 C to 132 C
|
|
Electrical Ratings (millivolt)
|
0.25 A @ 0.25 to 12 Vdc
|
|
Electrical Ratings (AFL)
|
8A @ 120 Vac
|
|
Electrical Ratings (AFL)
|
5.1A @ 240 Vac
|
|
Electrical Ratings (ALR)
|
48A @ 120 Vac
|
|
Electrical Ratings (ALR)
|
30.6A @ 240 Vac
|
|
Differential Temperature (F)
|
Manual Reset
|
|
Differential Temperature (C)
|
Manual Reset
|
|
Maximum Ambient Temperature (F)
|
150 F
|
|
Maximum Ambient Temperature (C)
|
66 C
|
|
Case Dimensions (in.)
|
5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
|
|
Case Dimensions (mm)
|
143 mm high x 51 mm wide x 54 mm deep
|
|
Mounting
|
Horizontal or Vertical
|
|
Approvals, Underwriters Laboratories Inc
|
UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
|
|
Approvals, Canadian Standards Association
|
Certified: File No. LR95329-1
|
|
Includes
|
Heat-conductive compound
|
|
Includes
|
Stop factory-set at 250 F (121 C)
|
|
Includes
|
5 1/2 ft (1.7 m) capillary
|
|
