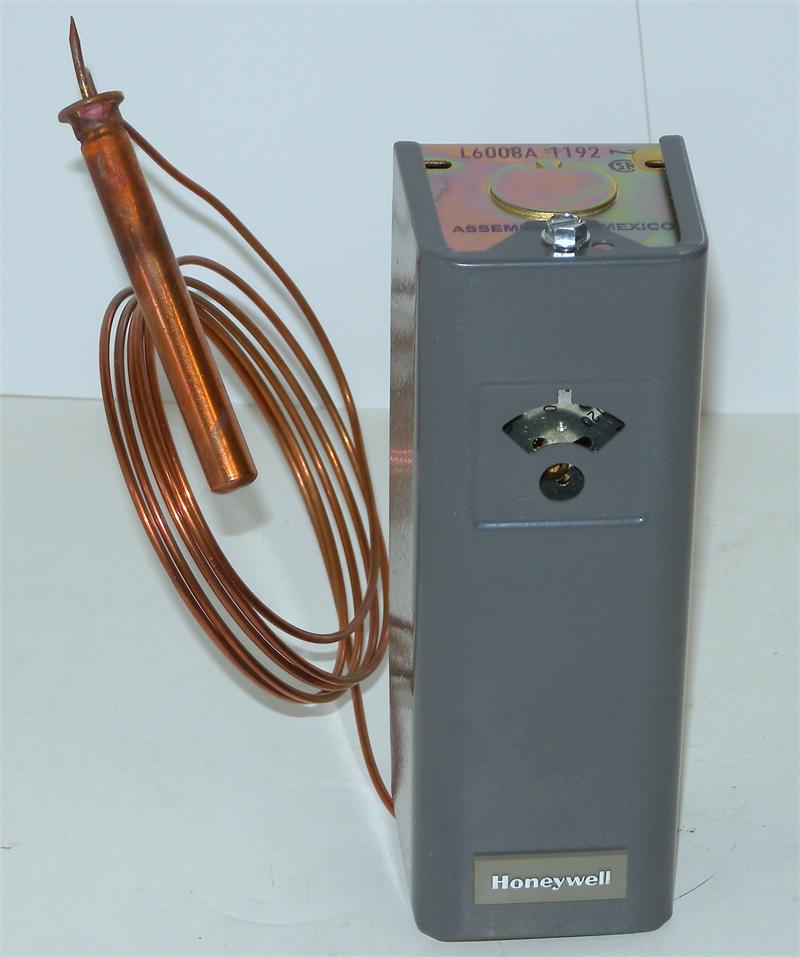

Honeywell L6008A1192 Circulator Control and Low Limit Aquastat Controller
MSRP: $218.06
Price: $132.73
You Save: $85.33 (39 %)
Item Number: 16919
Manufacturer Name: Honeywell
Manufacturer Part No: L6008A1192
|
|
Circulator Control and Low Limit Aquastat Controller with 100 F to 240 F operating temperature, 5 F to 30 F adj. Differential and 66 in. capillary
Aquastat® Controllers are
immersion type devices for limiting or regulating the temperature of
liquids in boilers, storage tanks, and other applications where
temperature control is required.
Product Manuals and Downloads:
Product Data
Installation Instructions
| Features
|
|
• Remote temperature sensing element detects and responds rapidly to temperature changes.
• Totally enclosed Micro Switch™ snap-acting switch.

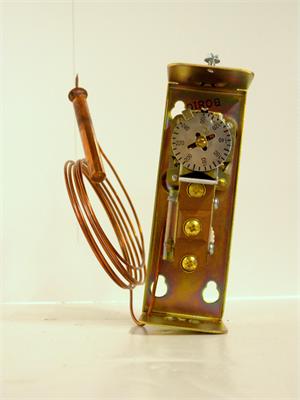

• Visible control point scale and external adjustment screw permit easy setting.
• Horizontal or vertical mounting of the remote element into boiler, tank, or other container.

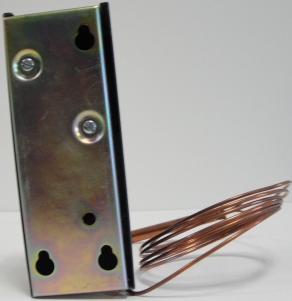

• Case mounts to a vertical surface.
|
Product Specifications
|
|
|
|
Description
|
Circulator
Control and Low Limit Aquastat Controller with 100 F to 240 F operating
temperature, 5 F to 30 F adj. Differential and 66 in. capillary
|
|
Application
|
Circulator Control and Low Limit
|
|
Bulb Size (in.)
|
3/8 in. x 2 7/8 in. copper
|
|
Bulb Size (mm)
|
10 mm x 73 mm copper
|
|
Operating Temperature Range (F)
|
100 F to 240 F
|
|
Operating Temperature Range (C)
|
38 C to 116 C
|
|
Electrical Ratings (millivolt)
|
0.25 A @ 0.25 to 12 Vdc
|
|
Electrical Ratings (AFL)
|
8A @ 120 Vac
|
|
Electrical Ratings (AFL)
|
5.1A @ 240 Vac
|
|
Electrical Ratings (ALR)
|
48A @ 120 Vac
|
|
Electrical Ratings (ALR)
|
30.6A @ 240 Vac
|
|
Differential Temperature (F)
|
5 F to 30 F adj.
|
|
Differential Temperature (C)
|
3 C to 17 C adj.
|
|
Maximum Ambient Temperature (F)
|
150 F
|
|
Maximum Ambient Temperature (C)
|
66 C
|
|
Case Dimensions (in.)
|
5 5/8 in. high x 2 in. wide x 2 1/8 in. deep
|
|
Case Dimensions (mm)
|
143 mm high x 51 mm wide x 70 mm deep
|
|
Mounting
|
Horizontal or Vertical
|
|
Approvals, Underwriters Laboratories Inc
|
UL Component Recognized: File No. MP466, Vol. 6, Sec.1, Guide No. MBPR2
|
|
Approvals, Canadian Standards Association
|
Certified: File No. LR95329-1
|
|
Includes
|
Stop factory-set at 240 F (116 C)
|
|
Includes
|
66 in. capillary
|
|
