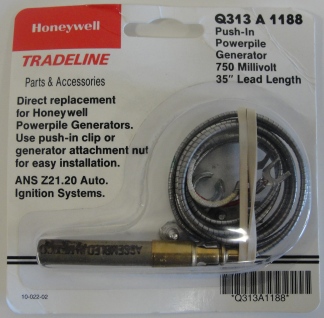

Honeywell Q313A1188 750 mV Thermopile with Spade Terminals Connection and 35" Leads

<< Previous in Thermostats

Next in Thermostats >>

MSRP: $57.14

Price: $42.23

You Save: $14.91 (26 %)

Item Number: 9814

Manufacturer Name: Honeywell

Manufacturer Part No: Q313A1188

Quantity:

Add to a new shopping list

Manuals and Downloads:

Thermopile Generators Brochure

Product Data

750 mV Thermopile with spade terminals connection and 35 in. leads

Q313 Thermopile Generator contains multiple thermocouples connected in series to increase the millivoltage output. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.

Features

Push-in clip, split nut, and adapter assembly for easy pilot burner installation. Spade or quick-connect terminals available for millivolt gas control connections. Male nut connector for PilotstatÂ® safety control power units. Available in a variety of lead lengths.

Product Specifications

Voltage

750 mV

Connection Type

Spade Terminals

Lead Length (in.)

35 in.

Lead Length (mm)

889 mm

Open Circuit Output (mV)

600 mV to 750 mV

Resistance

2.89 ohm

Temperature Ratings (F) Hot Junction

1400 F

Temperature Ratings (C) Hot Junction

760 C

Temperature Ratings (F) Cold Junction

780 F

Temperature Ratings (C) Cold Junction

416 C

Includes

push-in clip, 1/2 in. thermopile attaching nut.

Used With

Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners

Tradeline Value

Tradeline
