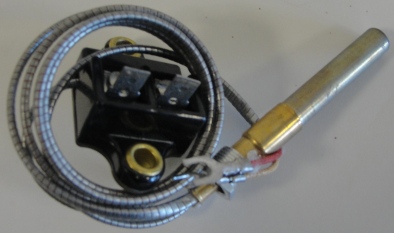

Honeywell Q313B1005 Thermopile 750MV w/ Terminal Block
|
Item Number: Q313B1005
Manufacturer Name: Honeywell
Manufacturer Part No: Q313B1005
* Whole number only
|
 Honeywell Q313B1005 Thermopile 750MV with Terminal Block Honeywell Q313B1005 Thermopile 750MV with Terminal Block |
|
Overview
Q313 Thermopile Generator contains multiple thermocouples connected in series to provide 750mV. The power generated is sufficient to operate an automatic millivolt gas control system, independent of any outside power source.
Features
- Push-in clip, split nut, or adapter assembly available (depending on model) for easy pilot burner installation.
- Spade or quick-connect terminals available for millivolt gas control connections.
- Available in a variety of lead lengths.
Product Specifications
- Application: Thermopile
- Includes: Terminal Block
- Used With: Q314, Q324, Q327, Q377, Q379, Q382 Pilot Burners
- Temperature Ratings (C): Hot Junction--760 C; Cold Junction--416 C
- Temperature Ratings (F): Hot Junction--1400 F; Cold Junction--780 F
- Voltage: 750 mV; Open circuit output--600 mV to 750 mV
- Connection Type: Spade Terminals
- Resistance: 2.89 ohms
- Length (in.): 35 in.
- Length (mm): 889 mm
|
