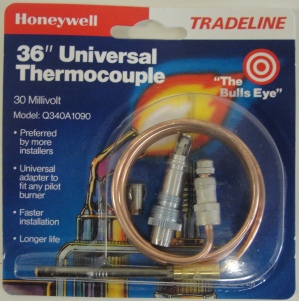

Honeywell Q340A1090 30 mV Thermocouple
MSRP: $12.58
Price: $10.48
You Save: $2.10 (17 %)
Item Number: 17405
Manufacturer Name: Honeywell
Manufacturer Part No: Q340A1090
|
|
Product Manuals and Downloads:
Thermocouple Brochure
Installation Instructions, Thermocouple
Installation Instructions, Igniter Flame-Rod Assembly
Product Data
Thermocouples generate a
thermoelectric current that senses a pilot flame on gas-fired heating
systems. The pilot flame heats the tip of the thermocouple, producing a
temperature differential between it and the base. This temperature
difference generates a small amount of DC power, measured in millivolts.
| Features
|
|
Push-in clip, split nut, and adapter assembly for easy pilot burner installation.
Spade or quick-connect terminals available for millivolt gas control connections.
Male nut connector for Pilotstat® safety control power units.
Available in a variety of lead lengths.
|
Product Specifications
|
|
|
|
Connection Type
|
11/32 32 Male Connector Nut
|
|
Open Circuit Output (mV)
|
26 mV to 32 mV
|
|
Temperature Ratings (F) Hot Junction
|
1400 F
|
|
Temperature Ratings (C) Hot Junction
|
760 C
|
|
Temperature Ratings (F) Cold Junction
|
780 F
|
|
Temperature Ratings (C) Cold Junction
|
416 C
|
|
Includes
|
Adapter and Push In Clip
|
|
