Honeywell R7284B1024 Electronic Oil Primary w/ 15 Sec. Lock-Out Timing

<< Previous in Honeywell Thermostats Next in Honeywell Thermostats >>
Price: $61.52
Item Number: 56602
Manufacturer Name: Honeywell
Manufacturer Part No: R7284B1024

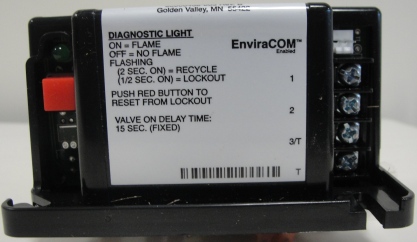

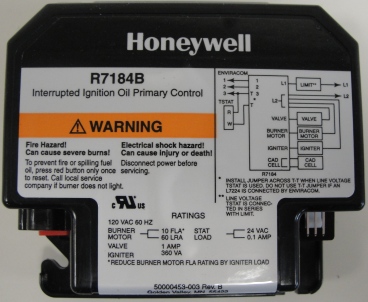

Honeywell R7184B1024 Electronic Oil Primary with 15 Sec. Lock-Out TimingHoneywell R7184B1024 Electronic Oil Primary with 15 Sec. Lock-Out Timing


The R7284 oil primary is a microprocessor oil control, engineered to address and anticipate every industry need. Designed with a host of new benefits, every setting and diagnostic is user-friendly displayed and available in multiple languages.


  • Dimensions (in.): 4 5/32 in. long x 4 11/32 in. wide x 2 1/2 in. high
  • Dimensions (mm): 105.4 mm long x 110.5 mm wide x 63.5 mm high
  • Temperature Range (F): -40 F to +147 F
  • Temperature Range (C): -40 C to +64 C
  • Item Type: Product
  • Mounting: Junction box on main burner
  • Approvals, Underwriters Laboratories Inc.: UL and cUL Component Recognized

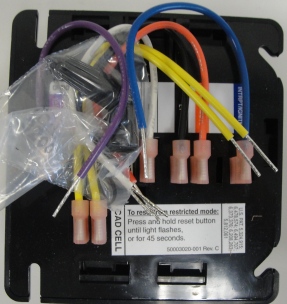

  • Electrical Connections: Burner motor, oil valve, ignition, cad cell, limit, thermostat, alarm
  • Ignition Type: Interrupted
  • Display: Using LED only
  • Timing, Safety Switch: 15 sec.
  • Electrical Ratings, Contacts (full load): 7.4 A @ 120 Vac; 3.7 a @ 240 Vac
  • Electrical Ratings, Contacts (locked rotor): 44.4 A @ 120 Vac; 22.2 A @ 240 Vac
