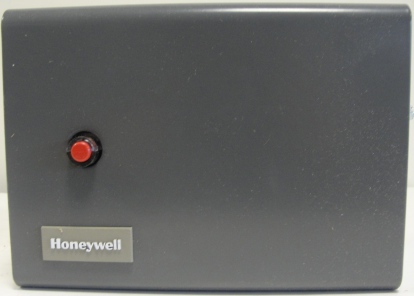

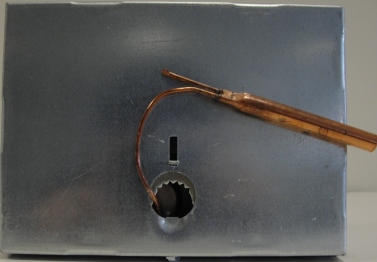

Honeywell R8182D111 Combination Protectorelay and Hydronic Heating Control with High Limit
MSRP: $515.34
Price: $313.68
You Save: $201.66 (39 %)
Item Number: 5244
Manufacturer Name: Honeywell
Manufacturer Part No: R8182D1111
|
|
Product Manuals and Downloads:
Product Data
Installation Instructions
Immersion type Aquastat
controller and oil burner primary control provides high limit and low
limit/circulator control for oil-fired hydronic heating systems.
| Features
|
|
Use in intermittent ignition applications.
Capable of zone control with zone valves.
Circulator
zone control with ZC and ZR terminals on R8182D,E,H,J. 8*Flame failure
during the running cycle results in a 45 second attempt to restart.
If unsuccessful, safety shutoff occurs, requiring manual reset before burner can be restarted.
R8182D,E,F
mount directly on burner; R8182H,J mount on 4 x 4 in. junction box and
include 5 ft (1.5 m) armored capillary with remote sensor.
C554A Cadmium Sulfide Flame Detector and a 24 Vac thermostat required.
|
Product Specifications
|
|
|
|
Description
|
Combination
Protectorelay and Hydronic Heating Control with High limit: 10 F
fixed; low limit/circulator: 10 F to 25 F adj. Differential
|
|
Operating Range, Low Limit (F)
|
110 F to 220 F
|
|
Operating Range, Low Limit (C)
|
43 C to 104 C
|
|
Operating Range, High Limit (F)
|
130 F to 240 F
|
|
Operating Range, High Limit (C)
|
54 C to 116 C
|
|
Differential Temperature (F)
|
High limit: 10 F fixed; Low limit/circulator: 10 F to 25 F adj.
|
|
Anticipator Setting
|
0.2 A
|
|
Maximum Safe Operating Pressure (psi)
|
200 psi on immersion well; 100 psi direct immersion.
|
|
Maximum Safe Operating Pressure (kPa)
|
1378 kPa on immersion well; 90 kPa direct immersion.
|
|
Electrical Rating (ignition)
|
360 VA
|
|
Electrical Ratings (burner AFL)
|
4.4 A @ 120 Vac
|
|
Electrical Ratings (burner ALR)
|
26.4 A @ 120 Vac
|
|
Timing Safety Switch
|
45 sec
|
|
Maximum Power Consumption
|
9 W
|
|
Dimensions (in.)
|
7 1/8 in. high x 5 1/4 in. wide x 3 7/16 in. deep.
|
|
Dimensions (mm)
|
181 mm high x 133 mm wide x 87 mm deep.
|
|
Insulation Depth (in.)
|
1 1/2 in.
|
|
Insulation Depth (mm)
|
38 mm
|
|
Operating Humidity Range (% RH)
|
0 to 95% RH, non-condensing
|
|
Maximum Ambient Temperature (F)
|
250 F at element
|
|
Maximum Ambient Temperature (C)
|
121 C at element
|
|
Approvals, Underwriters Laboratories Inc
|
UL Listed: File No. listed: MP268, Vol. 3,4 (R8182D,E,F), Vol. 37 (R8182H,J), Sec. 1.
|
|
Approvals, Canadian Standards Association
|
Certified: File No. LR95329-1
|
|
Includes
|
Auxiliary
ZC and ZR terminals may be used to provide circulator zone control
through an R845A Switching Relay. Heat-conductive compound and vertical
case.
|
|
