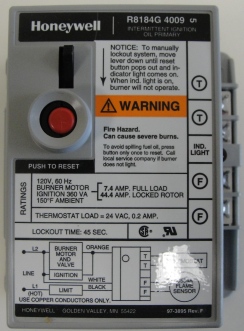

Honeywell R8184G4009 Protectorelay Oil Burner Control with 45 Sec. Lock-Out Timing
MSRP: $109.54
Price: $66.68
You Save: $42.86 (39 %)
Item Number: 3836
Manufacturer Name: Honeywell
Manufacturer Part No: R8184G4009
|
|
Product Manuals and Downloads:
R8184 Protectorelay® Oil Primary Controls
Product Data
Installation Instructions
Protectorelay Oil Primary Addendum
| Features
|
|
Controls oil burner, oil valve (if desired) and the ignition transformer in response to a call for heat.
Solid state flame sensing circuit.
LED on terminal strip indicates system lockout.
Remote lockout indication available on some models.
Enclosed safety switch with external reset button.
Manual trip lever opens safety switch for system maintenance.
Mounts on standard 4 x 4 in. junction box; select models may be mounted directly on burner housing.
C554A Cadmium Sulfide Flame Detector and 24 Vac thermostat required.
|
Product Specifications
|
|
|
|
Description
|
Protectorelay® Oil Burner Control with 45 seconds lock out timing
|
|
Ignition Type
|
Intermittent
|
|
Timing, Safety Switch
|
45 sec.
|
|
Mounting Bracket
|
For mounting on a standard 4 in. X 4 in. junction box or direct mounting on burner housing.
|
|
Electrical Rating; Contacts (full load)
|
7.4 A @ 120 Vac; 3.7 a @ 240 Vac
|
|
Electrical Rating; Contacts (locked rotor)
|
44.4 A @ 120 Vac; 22.2 A @ 240 Vac
|
|
Alarm Load Ratings (pilot duty)
|
75 VA @ 120/240 Vac, 50-60 Hz; 25 VA @ 24V, 50-60 Hz
|
|
Alarm Load Ratings (resistive)
|
1.5 A @ 120/240V, 50-60Hz; 3 A @ 24 V, 50-60 Hz
|
|
Dimensions (in.)
|
4 3/8 in. high x 4 1/8 in. wide x 2 1/2 in. deep
|
|
Dimensions (mm)
|
111 mm high x 104 mm wide x 64 mm deep
|
|
Temperature Range (F)
|
-40 F to +130 F
|
|
Temperature Range (C)
|
-40 C to +54 C
|
|
Approvals, Underwriters Laboratories Inc
|
UL Component Recognized; File no. MP268, Vol. 35 Sec. 1,3
|
|
Approvals, Canadian Standards Association
|
CSA Certified; File no. LR95329-1
|
|
Comments
|
With LED for lockout indication, and manual trip lever on safety switch to assure burner shutdown during servicing.
|
|
