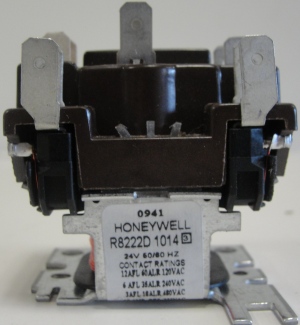

Honeywell R8222D1014 24V General Purpose Relay with DPDT Switching
MSRP: $23.50
Price: $15.33
You Save: $8.17 (35 %)
Item Number: 8201
Manufacturer Name: Honeywell
Manufacturer Part No: R8222D1014
|
|
Manuals and Downloads:
Installation Instructions
Product Data
Provide general purpose switching
for refrigeration and air conditioning equipment, appliances, vending
machines and similar applications.
| Features
|
|

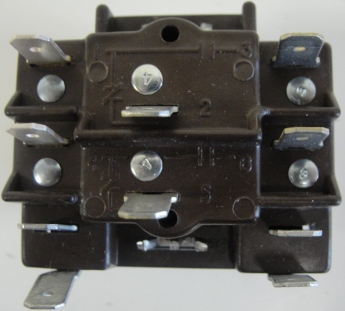

Molded terminal numbers and
circuit diagram on top of relay provide easy identification for wiring
and checking system operation.
Untaped coil assures cooler operation.
Laminated magnet construction for higher efficiency.
Base designed for easy replacement of competitive relays.
Double quick-connect coil terminals.
Plug compatible with Steveco 90-340 and Mars 90340.
|
Product Specifications
|
|
|
|
Description
|
24 V General Purpose Relay with Dpdt switching
|
|
Coil Ratings Voltage
|
24 Vac
|
|
Electrical Connections (main)
|
18 in. 457 mm
|
|
Electrical Ratings, Contacts (full load)
|
3 A @ 480 Vac; 6 A @ 208 Vac, 240 Vac, 277 Vac; 12 A @ 120 Vac
|
|
Electrical Ratings, Contacts (locked rotor)
|
18 A @ 480 Vac; 35 A @ 208 Vac, 240 Vac, 277 Vac, 60 A @ 120 Vac
|
|
Electrical Ratings, Contacts (resistive)
|
10 A @ 480 Vac; 20.8 A @ 120 Vac, 208 Vac, 240 Vac, 277 Vac
|
|
Pilot Duty Ratings
|
Minimum:
3 VA @ 24 Vac, 120 Vac, & 480 Vac; Maximum: 25 VA @ 24 Vac, 125 VA
@ 120 Vac, 240 Vac, & 480 Vac; Resistive: 3 A @ 277 Vac (0.75 power
factor); Powerpile: (Normally Open Contacts Only) 0.25 A @ 0.25 to 12
Vdc
|
|
Dimensions (in.)
|
1 7/8 in. high x 2 5/32 in. wide x 2 3/8 in. deep
|
|
Dimensions (mm)
|
48 mm high x 55 mm wide x 60 mm deep.
|
|
Temperature Ratings (F)
|
-20 F to +155 F
|
|
Temperature Ratings (C)
|
-29 C to +68 C
|
|
Approvals, Underwriters Laboratories Inc
|
UL Listed: File No. E59779, Guide No. NLDX2
|
|
Approvals, Canadian Standards Association
|
Certified: File No. LR35066, Guide No. 184-N-13.13
|
|
Tradeline Value
|
Tradeline
|
|
|
Replaces L404A1354, 2 psi to 15 psi
|
