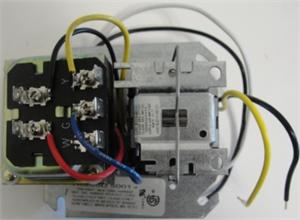

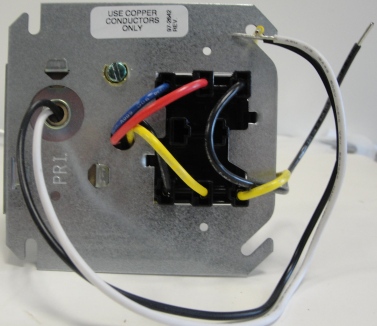

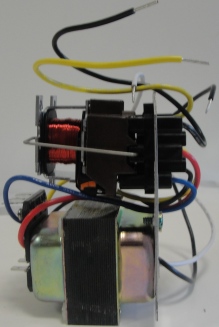

Honeywell R8285D5001 50VA Fan Center
MSRP: $63.80
Price: $44.66
You Save: $19.14 (30 %)
Item Number: 9835
Manufacturer Name: Honeywell
Manufacturer Part No: R8285D5001
|
|
Product Manuals and Downloads:
Product Data
R8285D5001 Honeywell 50 VA Fan Center with DPST Switching Action including R8222U
Provides low voltage control of line voltage fan motors and auxiliary circuits in heating, cooling, or air conditioning systems.
| Features
|
|
Transformer powers low voltage control systems and provides overload protection.
Low voltage terminal board provides convenient connections for thermostat and heating/cooling equipment wiring.
Mounts on standard 4 x 4 in. junction box.
Relay is easily replaced without disturbing wiring.
|
Product Specifications
|
|
|
|
Application
|
For Hydronic Applications; use with SV9600 SmartValve System and other systems that require 50 VA capacity.
|
|
Switching Action
|
DPST (One Power Rated, One Pilot Duty)
|
|
Electrical Ratings (W)
|
11 W maximum
|
|
Electrical Ratings (120 Vac, Full Load)
|
12A
|
|
Electrical Ratings (240 Vac, Full Load)
|
6A
|
|
Electrical Ratings (120 Vac, Locked Rotor)
|
72A
|
|
Electrical Ratings (240 Vac, Locked Rotor)
|
35A
|
|
Power Supply (Secondary)
|
26.5 V
|
|
Dimensions (in.)
|
4 3/16 in. high, 4 1/2 in. wide, 2 13/16 in. deep.
|
|
Dimensions (mm)
|
106 mm high, 114 mm wide, 71 mm deep
|
|
Approvals, Underwriters Laboratories Inc
|
UL Component Recognized; File No. E4436, Vol.15, Sec.1, Guide No.XAPX2
|
|
Approvals, Canadian Standards Association
|
Certified: File No. LR95329-17
|
|
|
