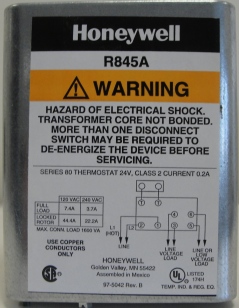

Honeywell R845A1030 Switching Relay with Internal Transformer, DPST Line Voltage Relay
MSRP: $119.58
Price: $72.79
You Save: $46.79 (39 %)
Item Number: 3838
Manufacturer Name: Honeywell
Manufacturer Part No: R845A1030
|
|
Product Manuals and Downloads:
Product Data
Installation Instructions
TRADELINE Installation Instructions
Switching Relay provides DPST
switching for hydronic zone controlled heating systems or SPST control
of two seperate loads. One load must be line voltage; the other may be
either line or low voltage. The R845A may be directly controlled by any
2-wire series 80 thermostat, such as the T86A Round Thermostat or T852A
Electric Clock Thermostat.
| Features
|
|
|
Integral transformer provides low voltage power for control circuit.
|
Product Specifications
|
|
|
|
Description
|
Switching
relay with internal transformer, provides Dpst switching for hot water
zone control systems, or spst control of two separate loads.
|
|
Application
|
Provide intermediate switching of a line voltage device form a low voltage controller.
|
|
Switching Action
|
DPST; one pole line voltage, the other line or low voltage
|
|
Coil Ratings Current
|
0.4A
|
|
Coil Ratings Voltage
|
24 Vac
|
|
Transformer Primary Rating
|
120 Vac, 50/60 Hz
|
|
Transformer Secondary Rating
|
24 Vac
|
|
Temperature Range (F)
|
115 F maximum ambient for 60 Hz. 105 F Max. Ambient for 50 Hz.
|
|
Temperature Range (C)
|
46 C maximum ambient for 60 Hz. 41 C maximum ambient for 50 Hz.
|
|
Thermostat Compatibility
|
Low voltage (Class 2) 2-wire
|
|
Dimensions (in.)
|
5 1/4 in. high x 4 1/4 in. wide x 2 5/16 in. deep
|
|
Dimensions (mm)
|
133 mm high x 108 mm wide x 59 mm deep
|
|
Electrical Connections (Control Circuit)
|
2-Wire
|
|
Electrical Ratings
|
Maximum input: 5W
|
|
Electrical Ratings (Maximum Input)
|
5.0 W
|
|
Electrical Ratings (Primary Voltage)
|
120V, 50/60 Hz
|
|
Contacts Electrical Rating Main Contacts 120 Vac
|
7.4A AFL; 44.4A ALR; 10A Resistive
|
|
Contacts Electrical Rating Secondary Contacts 120 Vac
|
3A ALF; 18A ALR
|
|
Contacts Electrical Rating Main Contacts 240 Vac
|
3.7A ALF; 22.2A ALR; 6.0A Resistive
|
|
Contacts Electrical Rating Secondary Contacts 240 Vac
|
2A AFL; 12A ALR
|
|
Contacts Electrical Rating Secondary Contacts Pilot Duty Rat
|
50 VA @ 24V
|
|
Contacts Electrical Rating Contacts Max. Connected Load
|
2000 VA (120 Vac to 240 Vac)
|
|
Includes
|
Integral transformer, enclosure
|
|
Approvals, Underwriters Laboratories Inc
|
Listed: File No. E4436, Guide No. XAPX
|
|
Approvals, Canadian Standards Association
|
Certified: File No. LR1620
|
|
