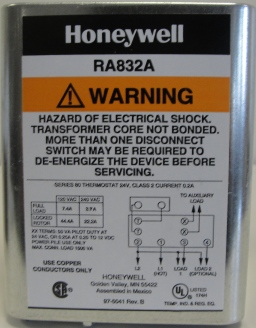

Honeywell RA832A1066 Switching Relay with DPST Switching, 120V
MSRP: $122.48
Price: $74.55
You Save: $47.93 (39 %)
Item Number: 3839
Manufacturer Name: Honeywell
Manufacturer Part No: RA832A1066
|
|
Product Manuals and Downloads:
Installation Instructions
Product Data 1
Product Data 2
Product Data (Tradeline)
Provide intermediate switching of a line voltage device from a low voltage controller.
Features
|
|
• Integral transformer provides low voltage power for control circuit.
• The
RA832A is a TPST relay. One relay pole is designed for low voltage or
millivoltage (Powerpile) auxiliary load. Two other relay poles are for
line voltage loads.
|
Product Specifications
|
|
|
|
Description
|
Switching Relay with internal transformer, for switching two line voltage loads having a common power source.
|
|
Application
|
Provide intermediate switching of a line voltage device form a low voltage controller.
|
|
Switching Action
|
DPST; one pole line voltage, the other low voltage or millivolt
|
|
Coil Ratings Current
|
0.4A
|
|
Coil Ratings Voltage
|
24 Vac
|
|
Temperature Range (F)
|
115 F maximum ambient for 60 Hz. 105 F Max. Ambient for 50 Hz.
|
|
Temperature Range (C)
|
46 C maximum ambient for 60 Hz. 41 C maximum ambient for 50 Hz.
|
|
Dimensions (in.)
|
5 1/4 in. high x 4 1/4 in. wide x 2 5/16 in. deep
|
|
Dimensions (mm)
|
133 mm high x 108 mm wide x 59 mm deep
|
|
Electrical Connections (Control Circuit)
|
2-Wire
|
|
Electrical Ratings
|
Maximum input: 5W
|
|
Electrical Ratings (Maximum Input)
|
5.0 W
|
|
Electrical Ratings (Primary Voltage)
|
120V, 50/60 Hz
|
|
Contacts Electrical Rating Main Contacts 120 Vac
|
7.4A AFL; 44.4A ALR; 10A Resistive
|
|
Contacts Electrical Rating Main Contacts 240 Vac
|
3.7A ALF; 22.2A ALR; 6.0A Resistive
|
|
Contacts Electrical Rating Secondary Contacts Pilot Duty Rat
|
50 VA @ 24V
|
|
Contacts Electrical Rating Secondary Contacts Dc Rating
|
1A @ 12 Vdc
|
|
Contacts Electrical Rating Secondary Contacts Millvolt Ratin
|
300 mA min. @ 750 mV
|
|
Contacts Electrical Rating Contacts Max. Connected Load
|
2000 VA (120 Vac to 240 Vac)
|
|
Includes
|
Integral transformer, enclosure
|
|
Approvals, Underwriters Laboratories Inc
|
Listed: File No. E4436, Guide No. XAPX
|
|
Approvals, Canadian Standards Association
|
Certified: File No. LR1620
|
|
