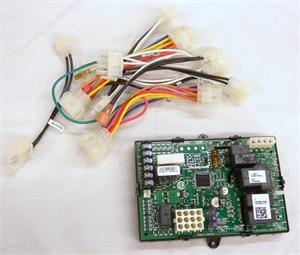

Honeywell S9200U1000 Universal Hot Surface Ignition Integrated Furnace Control
MSRP: $165.42
Price: $120.30
You Save: $45.12 (27 %)
Item Number: 46341
Manufacturer Name: Honeywell
Manufacturer Part No: S9200U1000
|
|
Product Manuals and Downloads:
Installation Instructions
Addendum
Cross Reference Guide
The S9200U1000 can be used with
conventional thermostats as well as the EnviraCOM™ enabled VisionPRO
IAQ and FocusPRO. The S9200U1000 Universal Integrated Furnace Control
is intended for residential natural or liquid propane fueled furnaces
only. The S9200U1000 EnviraCOM™ communications capability allows its
use in twinning applications and enables communication with local and
remote diagnostic devices such as the QuickLook hand held device
(QuickLook™ 72), EnviraLINK® web-based application and the W8735D
Telephone Access Module (TAM).
| Features
|
|
• Main burner ignition using a 120V hot surface igniter.
• Flame rectification circuit to monitor flame presence.
• Monitoring of system pressure switch, high temperature limit, and rollout functions.
• Appliance operation/safety requirements controlled via microprocessor.
• Control
of a standard induction-type circulating fan motor (based on appliance
requirements), in response to a conventional low voltage or EnviraCOM™
thermostat.
• LED system status, performance and diagnostic indication.
• Wire harnesses provided for simple replacement of most IFCs and integration with most heating and cooling appliances.
• Twinning capability
• EnviraCOM™
communication capability to enable local and/or remote system status,
diagnostics, troubleshooting, and HVAC system control.
|
Product Specifications
|
|
|
|
Description
|
Universal single stage heating & cooling
|
|
Line Voltage
|
120Vac (97-132 Vac)
|
|
Low Voltage
|
24V (18-30Vac)
|
|
Operating Temperature (F)
|
-40 F to +175 F
|
|
Operating Temperature (C)
|
-40 C to +79 C
|
|
Operating Humidity Range (% RH)
|
0% to 95% non-condensing
|
|
Igniter Current
|
1.0A resistive @ 95Vac output
|
|
Thermostat Anticipator Setting
|
(Stage 1 only) 100mA
|
|
HSI Warmup Time
|
17/27 or 30/30 seconds
|
|
Trial For Ignition
|
4, 6, or 8 seconds
|
|
Ignition Trials
|
Three, two tries if flame is not sensed
|
|
Flame Failure Response Time
|
2 Seconds max @ 1µA
|
|
Heat On Fan Delay
|
30 or 60 seconds
|
|
Heat Off Fan Delay
|
60, 90, 120, or 180 Seconds
|
|
Cool Fan On Delay
|
5 seconds
|
|
Cool Fan Off Delay
|
0 or 60 seconds
|
|
Gas Control Used With
|
Any 24Vac redundant, direct ignition gas control rated at 1.5A or less. Honeywell VR8205 recommended.
|
|
Cooling Contactor Used With
|
Any 24Vac contactor rated at 1.0A or less
|
|
Induced Draft Blower Load
|
2.2FLA / 25LRA max @120Vac
|
|
Ciculator Load
|
14.5FLA / 25LRA max @120Vac
|
|
Type of Fan Used With
|
Standard Induction-Type Circulating Fan
|
|
|
