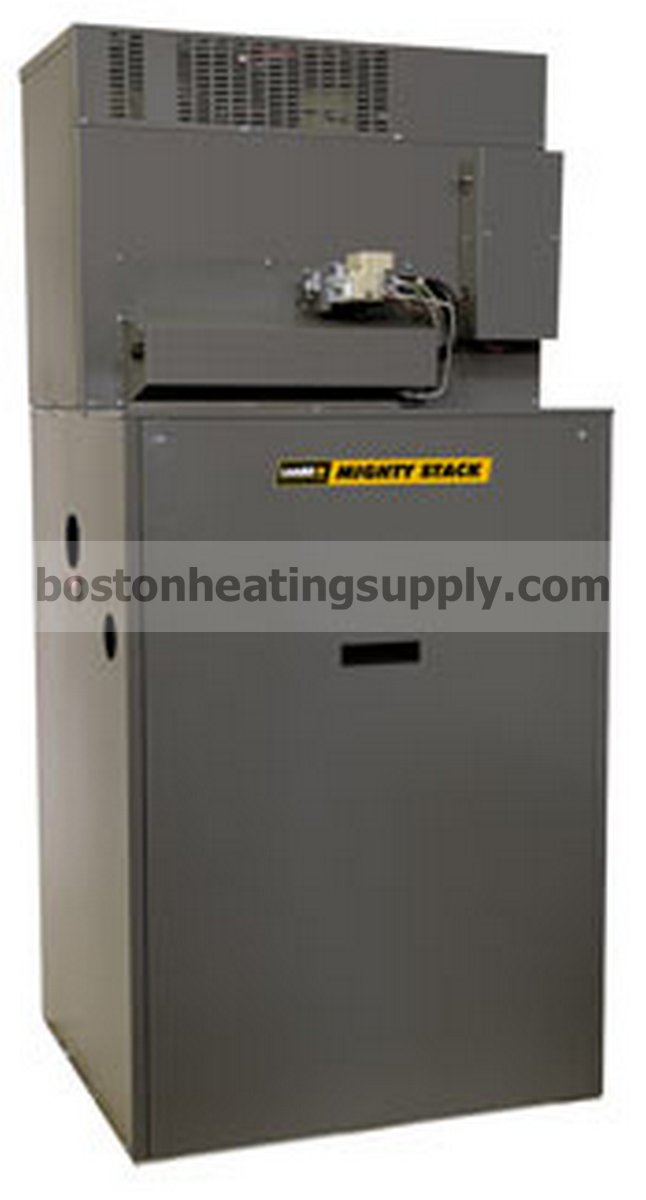

Laars TL00-199 Mighty-Stack Automatic Circulating Water Heater

<< Previous in Mighty-Stack Next in Mighty-Stack >>
Price: $1,500.00
Item Number: 11093
Manufacturer Name: Laars Heating Systems Company
Manufacturer Part No: TL00-199
Laars TL00-199 Mighty-Stack Automatic Circulating Water Heater
Specifications:
  • Input: 199 MBTU/h
  • Output: 165 MBTU/h
  • Thermal Efficiency: 83%
  • Gas Connection Size NPT: 3/4"
  • Water Connection Size NPT: 1-1/2"
  • Vent Connection Size: 4"
  • Minimum Clearances from Adjacent Combustible Construction:
    • Top: 18"
    • Water Connection Side: 6"
    • Opposite Side: 6"
    • Front: 2"
    • Rear: 2"
Standard Equipment:
  • CSA design certified to ANSI Z21.10.3
  • 83% Thermal efficiency
  • Meets ASHRAE 90.1 requirements
  • Combination operating gas valve/regulator
  • Natural or Propane Gas
  • 4" vent
  • Can be vertical (Category I) vented
  • Integral induced draft fan (can be horizontally (Category III) vented up to 40-feet equivalent without additional fans)
  • Integral non-combustible base
  • Copper tube heat exchanger
  • Gasketless bronze headers
  • 24 VAC control system
  • Hot surface pilot ignition
  • Slide-out burner tray
  • Fan proving switch
  • Flame rollout safety switch
  • Operating control
  • Manual reset high limit
  • Pressure relief valve, 125 psi
  • Circulator time delay relay
  • Fully factory tested
  • 10 Year exchanger warranty

     TL00-199 Manual.pdf
